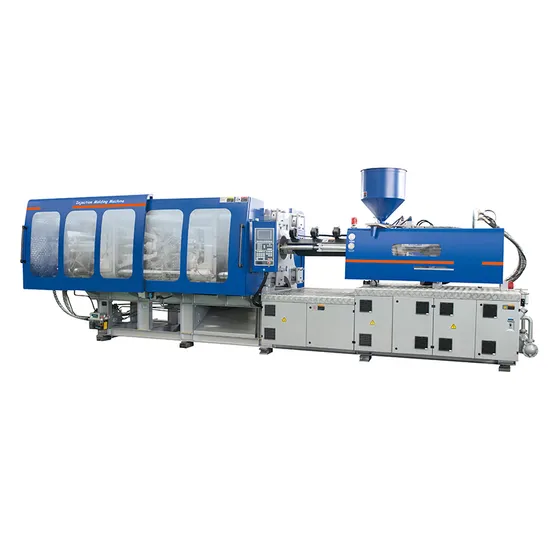

UV150 PVC Injection Molding Machine

US$1.00-2.00 1 Piece (MOQ)

Basic Info.

Model NO.
UV/150
Plastic Type
Thermoplastic
Plasticizing Way
Screw Type
Clamping Way
Hydraulic & Mechanical
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008
Certificate of Origin
1
Certificate of Fumigation
1
Packing List
1
Commercial Invoice
1
Easy Broken Parts
1
Transport Package
Wooden Pallet and Dust Cover
Trademark
K&E
Origin
China
HS Code
8477101090
Production Capacity
200/Y

Product Description

PVC IMM :
Cooling fan installed on barrel,Widened protective door.,Increased motor.
The main production of PVC material pipe fittings
Parameters:
PVC STYLE SPECIFICATION UV/150
SCREW TYPE A B C
Injection Unit
Screw diameter mm 38 42 45
Screw L/D ratio L/D 21 19 17.7
Shot volume(theoretical) CM3 227 277 318
Injection weight(PVC) g 289 353 405
Injection rate g/s 132 161 185
Injection pressure MPA 209 171 149
Screw speed rpm 120
Clamping Unit
Clamping force KN 1500
Open stroke mm 380
Space between tie-bars(W*H) mm 460*420
Max mould height mm 450
Min mould height mm 160
Ejector stroke mm 120
Ejector force KN 50
Others
Max pump pressure MPA 16
Pump Motor power KW 18.5
Heating power KW 9.3
Numbers of heating area Segment 3+1
Machine dimension(L*W*H) M 4.6*1.45*2.1
Oil tank cubage L 270
Machine weight TON 4

Configuration List:
Name Brand
Computer KEBA(AUSTRIA) or EST
Servo Drive INOVANCE(CHINA)
Servo Pump SUNNY(USA) / SUMITOMO(JAPAN)
Servo Motor PHASE(ITALY)
Electro-hydraulic Proportion valve HNC (Taiwan)
Stroke transducer NOVO or Miran(GERMANY)/GERFRAN(ITALY)
Breaker Schneider (FRANCEN)/Siemens(GERMANY)
Contacts Schneider (FRANCEN)/Siemens(GERMANY)
Switch Schneider (FRANCEN)/Siemens(GERMANY)
Hydraulic Direction Valve Vickers (USA) or Rexroth (GERMANY)
Plasticing Motor DINAMIC(ITALY) or STF(ENGLAND)
Hydraulic Hose MANULI(ITALY)/CONTINENTAI(GERMANY)
Plasticing speed sensor OMRON
Sealing ring HALITE or TREIIEBORG(UK or GERMANY)
