PVC Powder Mill Machine PVC Milling Machine

Product Description

Product Description

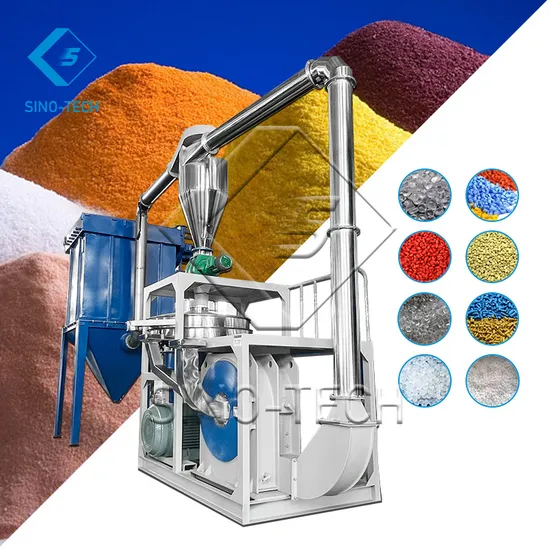

Automatic PE LDPE HDPE LLDPE PVC PET EVA PS ABS high speed plastic pulverizer mill machine
Application
Adopted material is HDPE LDPE LLDPE PVC PE PET pellet or flakes that the size is not surpass the 12mm ,soft PVC ,HARD pvc and so on.
Final powder mesh size in genneral is between 20~80 mesh.
The powder mesh size is adjustbale.

Features
1. Compare with same type pulverizer, the capacity of this mode is more higher
2. Equipped with dust collection device to reduce dust pollution.
3. Close blower for discharge can reduce labor intensity of worker
4. the cover of main machine can be opened for maintain
5.the cooling of machine have wind cooling and water cooling, it can cool the machine body very good.
Components:
1. Grinding room
2. Main motor
3. Wind-sending pipeline
4. Hopper
5. Shanking feeder
6. Rotundity vibrating sieve
7. Cyclone windbutterfly valve
8. Cyclone seperator
9. Blower
10. Electrical control cabinet
11. Dust catcher. Product Parameters
Specification

Disc-type
Item Model	MF-400	MF-500	MF-600	MF-800
Main Motor(KW/hp)	22/30	37/50	45/60	45/100
Total Power(KW/hp)	26/35	44/59	54/72	88/118
Blade Material	SKD-11	SKD-11	SKD-11	SKD-11
Capacity	50-300kg/hr	80-500kg/hr	120-800kg/hr	200-1200kg/hr
Vibration Sieve	ZDS-800	ZDS-1000	ZDS-1000	ZDS-1200
Dimensions(mm)	2600x2200x3600	3000x2800x3900	3200x3000x4200	3500x3200x4500
Weight(kg)	1680	2280	2680	3580
Turbo-type
Item Model	SMW-400	SMW-500	SMF-600	SMF-800
Main Motor(KW/hp)	30/40	37/50	45/60	75/100
Total Power(KW/hp)	30/40	44/59	54/72	88/118
Vibration Sieve	No	ZDS-1000	ZDS-1000	ZDS-1200
Capacity(kg/h)	50-120	80-280	120-380	200-800
Dimensions(mm)	2200x1500x1600	3000x2800x3900	3200x3000x4200	3500x3200x4500
Weight(kg)	1000	1680	2280	2880

Detailed Photos

Turbo Feed Inlet Main Motor
Turbo Blade Frame Disc Blade Disc Blade Frame
Cooling Water Port Cyclone Separator Vibration Sieve
Application
Application Material
This pulverizer is mainly applied for pulverizing polyethylene(PE,including LLDPE,LDPE,MDPE,HDPE).polyvinylchloride(PVC,including hard PVCand soft PVC).propene polymer(PP)polystyrene(PS)ABS,Nylon(PA),EVA,PET and other materials. Company Profile



Certifications


Packaging & Shipping


FAQ
Q: How about your after-sale service ?
We offer manual instruction and engineer training before loading,after shipment we provide 24 HRS online support, video technical support or field installation assist.
Q: What is the lead time?
For customized machine, it takes about 45-60 days after deposit. For stock machine, fast shipment. ( The actual production cycle will vary according to the degree of customization.)
Q: What is the warranty period for your machine ?
12 months warranty for components and technical support .
Q: Do you provide custom machines?
Most of our machines are customized. Our goal is efficiency and stable performance. We design the machines according to customers products to meet customer' needs.
Q: How can we install the machine when it arrives?
We can send experienced technicians to customer's country for guiding the installation and commission the machine, also train the customer's employees.
Q: What's the advantage of SINOTECH?
We provide customers with turnkey projects. Including plant design, plastic machine and mold installation, debugging, also we can source the auxiliary equipments for customers. We can ship the full set of machines after testing in our factory. It will save a lot of cost and time.

---
