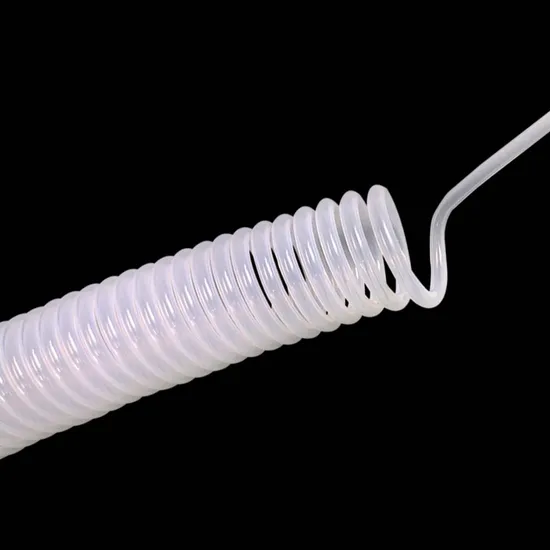

FEP PTFE Spring Hose Coiled Tube

Product Description

Product Description FEP PFA PTFE Spring tube coid hose
1. It is a retractable hose made from high performance, chemically inert and ultra pure FEP , PFA & PTFE Tubing. 2. Thermos forming will allow the coil to maintain its helical coiled shape and become retractable. 3. Using the non stick properties of PFA or FEP Tubing becomes a transport for some of the most viscous fluids without fear of
a line clog. Keeping its round tube like shape allows coils to have an unrestricted flow
4. Retractable FEP Coiled Tubing can also be used to increase surface area and exposure time in "UV" purification systems
Technical Date Technical Data of FFE, PTFE and PFA

Specifications	FEP	PTFE	PFA
Chemical/Solvent Resistance	Excellent	Excellent	Excellent
Density	2.15 g/cm3	2.16~2.18 g/cm3	2.14~2.16 g/cm3
Water Absorption	<0.03%	<0.01%	<0.03 %
Specific Gravity	2.12~2.17	2.13~2.22	2.12~2.17
Elongation	250%~330%	200~450%	280~400
Tensile Strength	19~22 MPa	20~45 Mpa	27~35 Mpa
Hardness Durometer	55 Shore D	50~65 Shore D	55~60 Shore D
Coefficient of Friction	0.05	0.02~0.1	0.04~0.06
Dielectric Constant	2.1 MHz	2.1 MHz	2.1 MHz
Dielectric Strength	500~600 V/mil	480 V/mil	500 V/mil
Volume Resistivity	>1018 ohm-cm	>1018 ohm-cm	>1018 ohm-cm
Work Temperature	-70~+200ºC	-70~+260ºC	-70~+260ºC
Melting Point	270ºC	327ºC	302~310ºC

Certifications
Company Profile Sihui Jiyi Fluorine Plastic Co., Ltd.
Established in 2014. Located in Zhaoqing city, Guangdong provine, China. Factory certifications: ISO 9001, ISO 13485 Have 2 cleanrooms, to produce food grade tubing, medical grade tubing and high purity tubing. A professional manufacturer of PTFE hose, FEP hose and PFA hose

---
