Factory Supply FTTH Fiber Optic Modems F663 F663nv3a 1ge+3fe LAN Port + 2.4G WiFi Gpon ONU Ont with English Vision

Product Description

Product Description
F663NV3a FTTH is a single-frequency and economical smart gateway specially built. This model uses the new-generation self-developed chip, loads the intelligent operating system, and supports dynamic loading of plug-ins, and givess users with abundant home services. The stable wireless performance provides smooth Wi-Fi for the home. Its unique open application platform creates an operator-dominated and user-centered smart home application ecosystem.
Feature: 1.highly reliable heat dissipation design guarantees its stable operation.
2.dual image ensures uninterrupted services during software downloading or upgrading, thereby enhancing software reliability
3.highly reliable lightning protection design provides lightning and surge protection of 4 kV for the adapter, 1.5 kV for the Phone interfaces, and 1.5 kV for the Ethernet ports.
4. full-service access capability featuring high bandwidth, high performance, high reliability, and easy operation, administration and maintenance (OMCI/TR-069) meets the continuously changing requirements of the customer, protects the legacy investment, and enhances the value of the operator's network. Product Parameters

Model	F663NV3a
Fiber interface	SC/UPC
Fiber port	1 GPON interface, 1GE+3FE LAN port + 2.4G WIFI,SC single-mode,
	Downstream rate 2.5Gbps, Upstream rate 1.25Gbps
Wavelength	Tx 1310nm, Rx 1490nm
Voice protocol	SIP, H.248
RX sensitivity	<-27dBm (1490nm)
WLAN	IEEE802.11b/g/n,2*2 MIMO, 2.4G WIFI,external antenna
Net weight	≤0.6Kg
Configuration method	NMS, Web, or TR069
Power	≤8W
DC power	Adapter input: 100-240 V AC, 50 - 60 Hz ;
	Adapter output: 11 - 14 V DC, 1 A
Button	Reset, power
Operation	Working temperature: -0-+40ºC
	working humidity:5-95%(non-condensation)
Dimension	250*220*65mm(length*width*height)
L2 forwarding capability	Forwarding packets of any length at wire speed
IPv4 L3 forwarding capability	2Gbit/s with any length packets in downstream direction
	1Gbit/s with any length packets in upstream direction
IPv6 L3 forwarding capability	2Gbit/s with any length packets in downstream direction
	1Gbit/s with any length packets in upstream direction
LAN	1*10/100/1000Mbps adaptive Ethernet ports, full/half duplex, RJ45 interface

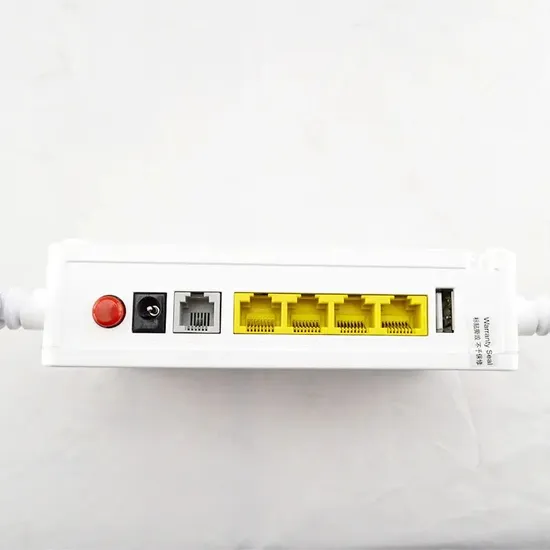

Detailed Photos
Company Profile
Anhui Zhuhuai Import and Export Trading Co.,Ltd. is committed to promoting the development of global optical fiber, optical cable and switch trade. We have a team of energetic and passionate professionals, adhering to the values of "Integrity, Innovation, Interconnection and Progress", with the vision of "Linking the World, Boda World". Our business covers intelligent buildings, overseas optical fiber, fiber optic cables and switches. We always adhere to the customer demand-oriented, through innovation and excellent quality, to provide customers with the best service. Our products are exported to many countries and regions such as Africa and Southeast Asia, and are highly trusted and praised by our customers.
Our business field covers the research, development, production and sales of fiber optic cables as well as switches. Among them, fiber optic cable products include fiber optic cables, fiber optic patch cords, fiber optic adapters, etc., and switch products include Ethernet switches, POE switches, etc.. These products are widely used in the network construction of telecom, mobile, Unicom and other carriers; not only that, but also in the network upgrade and transformation of government, enterprises, schools and other organizations often use our products.
FAQ
Q: Are you a factory or trading company? A: we are a manufacturer & trading company Q: How to proceed an order for the products? A:Firstly,let us know your requirements or applications;
Secondly,we quote according to your requirements or suggestions;
Thirdly,customer confirms the samples and places deposit for formal order;
Lastly,we arrange the production. Q: Whats your main products? A:Outdoor fiber optic cables;indoor fiber optic cables;FTTH Drop cables ;ADSS; indoor armored patch cords fiber cable SC/LC/FC/ST;MTP/MOP optical patch cord. Q: Do you have certificate for raw material A:We build long term relationship cooperation with quality ISO9001,ROHS raw material supplier. Q: What's your products' advantages? A:Good quality and competitive prices. Strictly quality control when producing.
Professional team work, from design, development, producing, assemble, packing and shipping.Good after-sale service.
Professional online technical support can be provided. Moreover, if any problem of the goods, we will help to solve the problem or provide replacement of the goods. Q: What payment method do you accept? A:T/T(Bank transfer), Western Union, Money Gram, Paypal, etc. Q: What is your delivery time? A:7-15 days for common fiber cables, 10-20 days for your customized requirements. Q: Do you accept OEM,ODM? A:Yes, we accept them .

---
