Deep Hole Hydraulic Drilling Machine for Metal Working

US$1,200.00-1,250.00 1 SET (MOQ)

Basic Info.

Model NO.
85-13
Structure
Vertical Drilling Machine
Layout
Vertical
Controlling Mode
CNC
Number of Shaft
3
Hole Diameter
<50mm
Automatic Grade
Automatic
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Drilling Capacity
Φ1~Φ13mm
Stroke of Cutting
25mm-30mm
Cutting Motor
90V*2p
Spindle Power
0.75kw*4p*2p
Transport Package
Wooden
Specification
worktable size 370*400
Trademark
Yongxiong
Origin
Zhejiang, China
HS Code
8465920000
Production Capacity
5000sets/Year

Product Description

Product Description
Deep Hole Hydraulic Drilling Machine for Metal Working
Feature of flexibility and stability:
The combination of FCD material for the oil cylinder, fine processing and internal and external abrasive machining for the inner of oil cylinder and the related parts and strict processing technology makes a flexible and stable hydraulic automatic drilling machine with stron power.
Technology parameters:
Oil pressure applied: 15~20kg/cm2
Diameter of oil cylinder: 63mm
Forward thrust: 270kg
Back thrust: 170kg

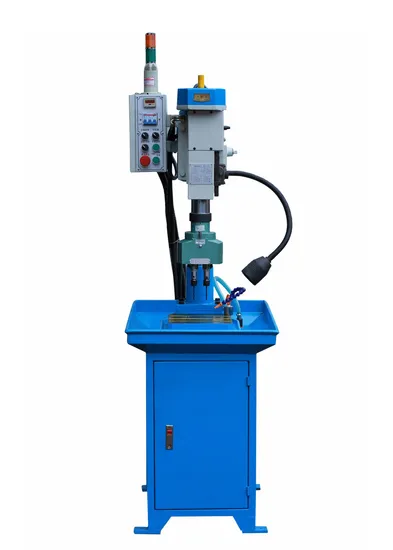

Detailed Photos
Product Parameters
Specifications
 85-13
Maximum Stroke
 85mm
Mode of front end of spindle
 JT-6mm
Drilling Capacity
 Φ1~Φ13mm
Stroke Cutting
25~30mm
Distance between spindle nose and worktable
 475mm
Spindle Moter
 0.75KWX4PX2P
Rotate speed of spindle
 50HZ 1350/2470/2700/4940
60HZ 1650/2770/3300/5540
Hydraulic Motor
 0.75KWX4P
CuttingMotor
 90V X 2p
Overall Size
 80*55*159cm
Package Size
 92 * 116 * 110cm
G/W
 Approx. 386kg
