Product Description
Product Description
Product Description

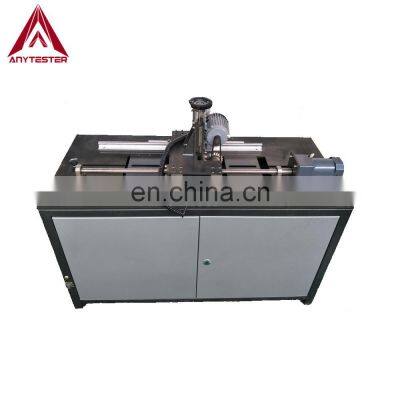

AT405 Digital Axial Notch Milling Machine is used to make pipe samples for cut crack and crack propagation test.
Standard
ASTM D1693
| ISO 13479, 1167
| GB/T 18476-2001
|
Note: For more standards, please contact us
|
|
|
Specification
Model
| AT405
|
Outside diameter of the pipe
| Φ63 ~ Φ630mm
|
Sample length
| ≤1800mm
|
Cutting length
| 50mm ~ 650mm
|
Cutting depth
| 15mm
|
Die diameter
| Φ200mm,
|
Cutting speed
| 750 rev/min
|
Feed speed
| 150mm/min
|
Milling speed
| 0.01±0.002mm/rev
|
Return speed
| 2400mm/min
|
Power
| 2.8KW
|
Dimensions
| 1160x510x1050mm
|
Power supply
| 3 phase, 380V, 50Hz
|
Details & Features
★ Cutting depth controlled by micrometer, accurate and reliable★ Equipped with receiving-material box, convenient to clear up
Our Company
History
Since 1982 with more than 20 years’ experience
Warranty
Two Year Warranty for whole product
Training
Video and user manual for training
Onsite service
Installation and training service is available
Testing service
Free sample testing before order is available
Lead time
15 working days lead time for most product
Packing & Delivery
Packaging
|
|
Dimensions
| 1160x510x1050mm
|
Weight
| Approx. 80kg
|
Packaging Details
| 1. The equipment is covered with film is protect it from water vapour during the trip.
2. The box is filled with foam to protect the equipment from impact.
3. Exported wooden box made from plywood, don't need fumigated.
|
Payment
Payment Term
|
T/T
| EXW
|
30% T/T in advance, paid the balance before shipment
|
|
| FOB
|
|
|
| CFR(C&F)
|
30% T/T in advance, paid the balance against copy of B/L
|
|
| CIF
|
|
| L/C
| L/C amount above 50,000 usd, we can accept L/C at sight
|
|
| West Union
|
Amount lower than 5000usd
|
|
| West Union
|
|
|
Delivery Time
| 7~10days after receiving payment for one container
|
|
|
