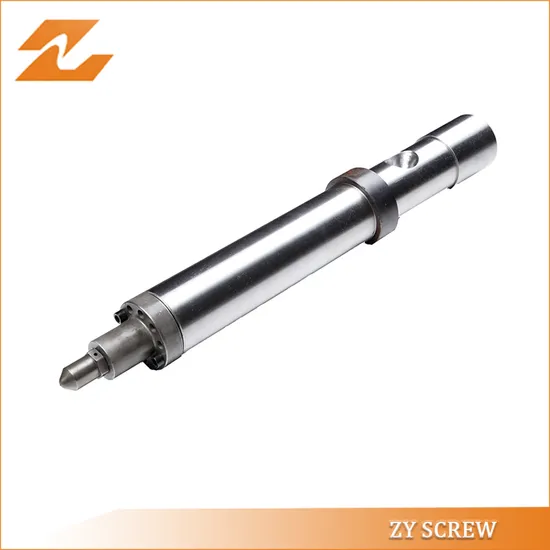

Nylon/ PU / PC Single Screw and Barrel for Injection Molding Machine

Product Description

Specifications:
45/90, 45/100, 50/105, 51/105, 55/110, 55/120, 58/124, 60/125, 65/120, 65/132, 68/143, 70/140, 75/150, 80/143, 80/156, 92/188
The above are standard specifications, we can customize according to customers' requirements.
The compression ratio of screws can be designed according to different products and ingredients.
Specification:
Screw diameter: Ø 20mm-Ø 220mm
Mould clamping force: 250T-3200T
Shot weight: 30G-30000G
Base Materials:
(1)38CrMoAlA(JIS SACM645)
(2)42CrMo(AISI 4140)
(3)4Cr5MoSi V1 (JIS SKD-61)
Bimetallic alloy materials:
1)Fe-based alloy
2)Ni-based alloy/Deloro alloy
3)Co-based alloy
4)NiCo-based alloy
5)Tungsten carbide/Wolfram carbide
Technics:
Heat treatment
High-frequency quenching
Nitriding treatment
Hard-chrome electroplating
Bimetallic alloy welding
Bimetallic alloy centrifugal casting
Technical parameter:
Nitrided layer depth: 0.5-0.8mm
Nitrided hardness: 900-1000HV
Nitrided brittleness: Less than grade 1
Surface roughness: Ra0.4
Linearity of screw: 0.015mm
Hard-chrome plating hardness after nitriding: ≥ 950HV
Chrome-plating layer depth: 0.025-0.085mm
Bimetallic layer depth: 3mm
Warranty and service: 1 year
Focus on quality and service.
Experienced manufacture, we will be the best choice.

---
