400V/380V Servo Stabilizer Three Phase Automatic Voltage Regulator 3 Phases AVR 1600kVA

Product Description

400V/380V Servo Stabilizer Three Phase Automatic Voltage Regulator 3 Phases AVR 1600KVA Product Description The rated capacity of SBW-F series three phase automatic voltage regulator (hereinafter referred to as SBW-F voltage regulator) ranges from 30KVA to 3000KVA for normal products. The normal voltage regulation range is 380V±20% (It could be customized according to your requirements).
SBW-F voltage regulator is applicable in areas where the power voltage fluctuates or where the voltage fluctuates due to loads change. It features in large capacity, high efficiency, no additional waveform distortion, sound voltage regulation performance, suitability for various loads, strong instantaneous over-load bearing capability, suitability for constant work. It is designed with manual and auto switch function and various protection functions, including over-voltage, under-voltage, over-current, phase lack, phase failure, and mechanic fault etc. It also has advantages of three phase independent/separate regulation.
Product Parameters

Product Name	Three Phase AC Power Automatic Voltage Stabilizer/Regulator
Rated Capacity	1600KVA (Could be customized)
Product Model	SBW-F-1600KVA
Input Voltage Range	380VAC±20% (Could be customized)
Rated Output Voltage	380V/220V/230V/240V/400V/415V/440V/480V(Could be tailored)
Working Frequency	50HZ-60HZ
Output Accuracy	±2%
Insulation Class	F
Waveform Distortion	No Additional Waveform Distortion
Phase	Three Phase
Working Temperature	-10ºC~+50ºC
Ambient Relative Humidity	30%-80%
Protection Class	IP 23
Cooling Way	Dry Type Air Colling
Insulation Resistance	≥5MΩ
Working Effiency	>90%
Current Type	AC
Product Type	Servo Motor Type
Regulation Method	Automatic Regulation Three Phase Individual/Independent/Separate Regulation

Product Advantages SBW-F automatic voltage regulator/stabilizer features in fast response speed, high efficiency, high output accuracy, automatic voltage regulation, no additional waveform distortion, sound voltage regulation performance, and suitability for constant work etc. It is designed with various protection functions, including over-voltage, under-voltage, over-current, phase lack, and phase failure protections etc.
Product Details
We use LCD multi-functional display screen to indicate the following data: input voltage, output voltage, output current, and working status etc. We could monitor the figures directly, which is very user-fiendly. Besides, the buttons on the screen are for function setting, which makes the AVR more flexible.
These four parts are the major elements for this three phase automatic voltage regulator stabilizer. High quality parts helps to facilitate the stable performance of the AVR.

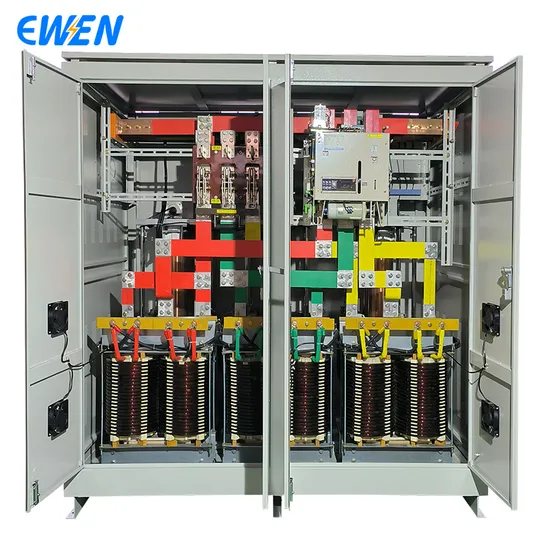

The inner structure of this SBW-F-1000KVA automatic voltage stabilizer/regulator for your reference.
It mainly contains copper column for voltage regulation, transformer for voltage compensation, servo motor, main switch, bypass switch, display screen, carbon brush, cabinet, heat draugt fan, bus bar, and other necessary parts.
There are various protection functions: over-voltage protection, under-voltage protection, over-current protection, short circuit protection, over-load protection, phase failure protection etc, thus to ensure the safety of the voltage regulator/stabilizer itself and the latter load equipment.
Product Cases
Ewen Electrical has been dedicated to designing customized products for our customers. If you have specific technical requirements, the AVR could be customized according to your needs.
For SBW type three phase automatic voltage regulator stabilizer, the rated capacity could be from 30KVA to 3000KVA, the rated working voltage could be customized as 380V/400V/415V/420V/440V/480V etc. The input voltage range could be customized according to your needs. And regulation type could be three phase simultaneous regulation or separate regulation.
Product Applications SBW voltage regulator is widely applied in industrial area, medical area, agricultural area, and transportation area. It is also used for voltage regulation for factories where there are various electrical equipment, like CNC machine, lathe, laser-cutting machine, generator, and other appliance.
Company Profile
Ewen Electrical adheres to the business policy of seeking development by science and technology and survival by quality, and wins the recognition of customers with excellent technology, advanced equipment, high-quality products, thoughtful service, flexible business methods and good corporate reputation.
Certifications Ewen attaches much importance to product quality by upholding the principle of developing by technology and surviving by quality. We produce goods according to ISO quality system standards and international and domestic industrial standards, which wins trusts of customers home and abroad. In the future, we would be dedicated to creating economic benefits and social benefits by increasing technology development budget, so as to enable us to become a energy-saving, environmental, technology-oriented enterprise.

---
