Easy to Operate Press Brake Machine

Product Description

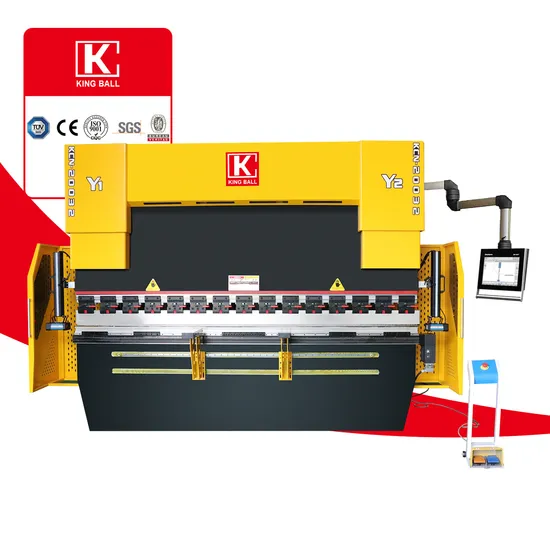

Electro hydraulic Synchronous CNC Press Brake
Model: KCN-8025
4+1 Axes CNC Control(X,Y1,Y2,R,W)
X: Backgauge front and back; Y1,Y2, : Left and right oil cylinder stroke
R : Backgauge up and down; W: Worktable crowning Product Description
Main functions and features
1.Overall welded and processed structure.
2.Electric hydraulic proportional servo synchronization, ensuring repeated accuracy.
3.Within one stroke, bending pressure can be controlled at random point, repeatability precision±0.01, parallelism 0.02.
4. Lower worktable has crowning device to anti deflection & upper tool has wedge compensation device.
5.Switzerland cybelec CNC control system, grating ruler, Rexroth hydraulics, servo motors and other accessories of famous brand are installed for perfect machine performance.
6.Ram stroke(Y1, Y2),backgauge (X, R) are controlled by CNC controller while ball screw and linear guide rail installed for high repeatability precision.
7.Imported ball screw and linear guide are used for rear stopper, to ensure the positioning precision of rear stopper, for processing precision of machine to be higher.

NO.	Item	Parameter		Unit
1	Nominal pressure	800		KN
2	Table length	2500		mm
3	Max.Slider stroke	200		mm
4	Max.Shut height	460		mm
5	Between columns	2100		mm
6	Throat depth	30		mm
7	Main motor power	5.5		KW
8	Down Speed	180		mm/s
9	Pressing Speed	12		mm/s
10	Return Speed	160		mm/s
11	Control axes	X+Y1+Y2+R +W		/
12	X axes Stroke	500		mm
13	X axes Speed	300		mm/s
14	R axes Stroke	200		mm
15	R axes Speed	50		mm/s
16	Backgauge Stoppers	4		/
		L	3000	mm
17	Overall dimension	W	1650	mm
		H	2350	mm
18	Machine weight	5600		kg

Detailed Pictures
High precision electric table crowning.
High-precision grating scale mounted
on C-board.
France Schneider components, Pedal switch with emergency stop, safe
anti-interference, stable and durable. operation, the base with rollers easy to move.
CybTouch 8PS CNC controller
Easy Operating:
1. Intuitive user-friendly interface.
2. Simple pages, clear display, large keys.
3. Large, vivid and high-contrast fully touchscreen.
4. Complete programming for efficient mass-production with multiple bends.
5. Easy single bends with EasyBend page.
6. On-line help and interactive warning pop-ups.
7. Comfortable wireless data backup and software updating using PC or Notebook.
8. Large variety of languages available.
Better Bending:
1. Various automatic calculations of bend functions.
2. Bending sequences and programs can be memorized.
3. Angle, pressure and crowning management.
4. Easy manual movement.
5. Offline 2D software available.
Powerful:
1. Controls 3 axes (with optional 4th axes).
2. 2D graphic profile creation with manual sequencing (option).
3. Bend allowance calculation.
4. Pressure - crowning calculation.
5. Modular tools for each part or bend.
6. Angle and back gauge correction.
7. Telemaintenance via wireless connection with PC or notebook.
8. USB port for memory stick for data transfer/backup.
Main configuration

Name	Producer
CNC controller	CybTouch 8PS Cybelec Switzerland brand
Main motor	Siemens Germany brand
Electrical components	Schneider France brand
Gear pump	Sunny USA brand
Seal ring	NOK Japan brand
Hydraulic system	Boschrexroth Germany brand
Ball screw ,Linear guide	HIWIN Taiwan brand
Grating ruler	GIVI Italy brand
Tubing connector	EMB Germany Brand
Servo Motor and drive	Delta Taiwan brand

The standard accessories are in the below: Anchor bolt Hex nut Seal ring Gasket Grease gun Allen wrench Foot switch Front support arms Electrical box key, control panel key Operation manuals

---
