Basic Info.
Installation
Direct Connected
Usage
Multi-Functional Energy Meter
Electric Equipment
Three-phase Three-wire
Power Meter Connection
Terminal
Selling Units
Single Item
Operating Temperature
Other
Single Gross Weight
8.500 Kg
Voltage Number of Channels
Three Channels Ua,Ub,and UC)
Feature
Portable/Handheld
Display Type
Digital Only
Voltage Measuring Range
0~1000V
Current Number of Channels
Three Channels (Iaib,IC
Single Package Size
44X30X32cm
Transport Package
Wooden Cage
Specification
Wooden Cage
Production Capacity
500 Set Per Week
Product Description

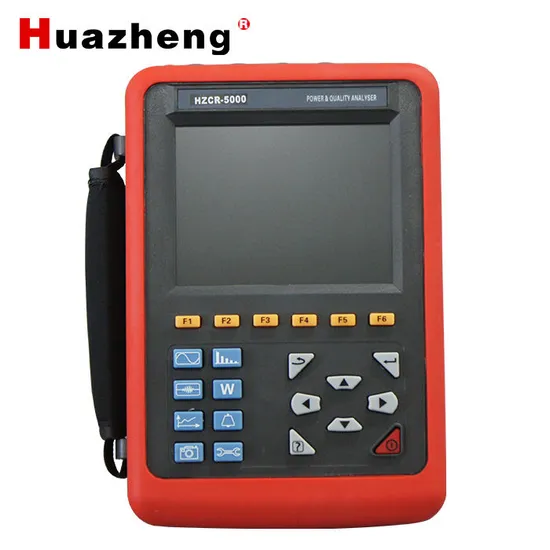

Huazheng Electric HZCR-5000 Multi Function Electrical 3 Phase Power Analyzer With Logger Product Description
| Base condition and working condition |
| Influence factor | Test item | Base condition | Working condition |
| Environment temperature | All parameters | (23±2)°C | -10°C~ 40°C |
| Relative humidity | All parameters | 40%~ 60% | <80% |
| Phase-to-neutral voltage | All parameters | (100±1%)V | 1.0V~ 1000V |
| Phase-to-phase voltage | True RMS phase-to-phase voltage | (200±1%)V | 1.0V~ 2000V |
| Current | True RMS current | (5±1%)A | 10mA~ 1000A |
| Network frequency | All parameters | 50Hz±0.1Hz | 40Hz~ 70Hz |
| Phase shift | Active power and active energy | Cosφ=1 | Cosφ: 0.2~ 1.0 |
| Reactive power and reactive energy | Sinφ=1 | Sinφ: 0.2~ 1.0 |
| Harmonic | All parameters | <0.1% | 0.0%~ 100% |
| Voltage unbalance | All parameters | <10% | 0.0%~ 100% |
| Working voltage of device | All parameters | DC9.8V±0.1V | DC9.5V~ 10.5V |
External electric field, magnetic field | All parameters | Should be avoided |
| Test position | Measured related parameters of current | Tested wire at the center of clamp. |
Customer Use Cases
Recommendation
Certifications
Company Information
ABOUT US
Huazheng, established in 2008, is a enterprise which is engaged in the research, development,
sale and service of transformer tester, transformer oil tester, relay tester, high voltage tester, circuit breaker tester. We are a cooperative supplier of the State Grid of China, and we have also
established cooperative relationships with customers in countries and regions such as USA, Brazil, Chile, Vietnam, Indonesia, Korea, Turkey, Dubai, South Africa, etc.We have obtained ISO and
CE certificates. And developed impeccable inspection organization to make sure all of our
products quality comply with international standards(like IEC/ASTM/EN).
