Small scale milk & yogurt processing line
Production line introduction:After centrifugation, standardization, homogenization, sterilization and cooling, the milk can be directly filled after pasteurization and homogenization without any additives. Due to low temperature sterilization, the beneficial bacteria in milk can be retained, and the nutritional value is particularly high. Moreover, the cost of the equipment is low and the package is simple.
Pasteurized milk is a kind of "low temperature pasteurized milk". The harmful microorganisms in raw milk have been generally killed, but some other microorganisms will be retained. Therefore, this kind of milk is required to be refrigerated at about 4 ℃ in transportation, sales, storage and other links, so as to prevent the microorganisms in it from "active". glass bottles, etc
Description
This production line is used for the production of pasteurized milk & yoghurt fermented milk. The production line of different specifications can be customized
according to customer requirements and output.
The entire production line includes milk collection, blending system, homogenization sterilization system, fermentation system, cooling system, filling system, CIP system.
Process: milk collection → milk purification → sterilization → homogenization → (fermentation) → cooling → filling → refrigeration
100L
| 150L
| 200L
| 300L
| 500L
|
100L refrigeration tank
| 150L refrigeration tank
| 200L refrigeration tank
| 300L refrigeration tank
| 1000L refrigeration tank
|
100L preheat tank
| 150L preheating tank
| single filter
| 300L preheating tank
| 500L preheating tank
|
single filter
| single line filter
| 200L preheating tank
| single filter
| double filter
|
200L Homogenizer
| 200L Homogenizer
| 200L Homogenizer
| 500L Homogenizer
| 500L Homogenizer
|
100L sterilization tank
| 150L sterilization tank
| 200L sterilization tank
| 300L sterilization tank
| 500L sterilization tank
|
100L Fermentation Tank
| 150L Fermentation Tank
| 200L Fermentation Tank
| 300L Fermentation Tank
| 500L Fermentation Tank
|
Packing Machine
| Packing Machine
| Packing Machine
| Packing Machine
| Packing Machine
|
Breast pump*4
| Breast pump*4
| Breast pump*4
| Breast pump*4
| Breast pump*4
|
Pipes, valves, bases
| Pipes, Valves, Quick Connect
| Pipes, Valves, Quick Connect
| Pipes, Valves, Quick Connect
| Pipes, Valves, Quick Connect
|
(optional)
| (optional)
| 300L CIP cleaning
| 300L CIP cleaning
| 500L CIP cleaning
|
Cooling Tank
Material: SUS304 Power supply: 380v/50Hz Total power: 2Kw Cooling capacity: 5000 kcal/hour Installation size: 1700*1100*1950mm Refrigeration medium: R22 Thermal insulation performance: ≤1℃/3H Compressor:2P Motor power/quantity: 0.75kw/1
Duplex filter
Filtering capacity: 5t/h Applicable temperature: ≤120℃ Filter aperture: 200 mesh Working pressure: ≤0.2MPa Filter material: 304 stainless steel Filtration accuracy: 200 (mesh/in)
Preheating tank
Material: SUS304 Power supply: 380v 50Hz Power: 9kw Installation size: 1020*870*1530mm Power of stirring motor: 0.55kw Stirring speed: 36r/min Working pressure: 0.09 Mpa Maximum temperature: the boiling point of the liquid at the local pressure
Homogenizer
Output: 200L/H Maximum pressure: 25Mpa Motor power: 4kw Dimensions: 990*600*850mm Whole machine weight: 600kg Pump body material: 1Cr18Ni9Ti Plunger material: 9Cr18 Plunger diameter and frequency: 20mm, about 210 times/min Plunger sealing material: V-shaped cloth clip ring Check valve structure: cone valve
Pasteurizer
Filtering capacity: 5t/h Applicable temperature: ≤120℃ Filter aperture: 200 mesh Working pressure: ≤0.2MPa Filter material: 304 stainless steel Filtration accuracy: 200 (mesh/in)

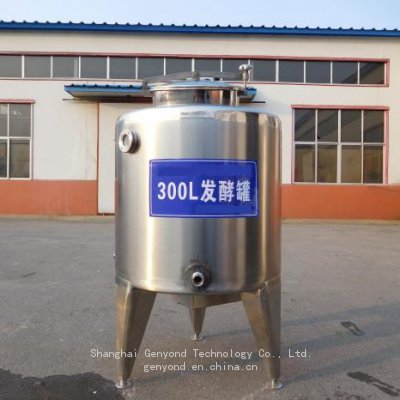

Fermenter
Material: SUS304 Power supply: 380v 50Hz Power: 9kw Installation size: 1400*1400*1950mm Stirring motor: 0.55kw Stirring speed: 36r/min Working pressure: 0.09 Mpa Maximum temperature: the boiling point of the liquid at the local pressure
Filling Machine
Material: SUS304 Working method: continuous work Filling method: automatic filling Equipment size: 1300*1300*1750mm
Air Compressor
Power: 7.5kw Wooden box size:1240*500*1060mm
Acid/Alkali/Water Tank
Water tank capacity: 500L Alkali tank capacity: 500L Acid tank capacity: 500L Pump power: 1.5kw Equipment weight: 500kg Dimensions: 4000*900*2300mm
