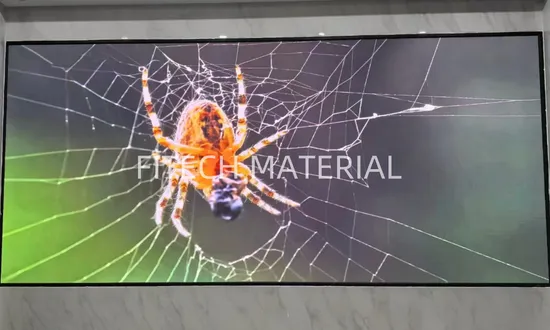

1.25mm Indoor High Quality Fine Pixel Pitch Video Wall LED Splicing Screen

Product Description

Product Description
Series LED small pitch splicing screen supports advanced HDR digital image technology, with high brightness, high Contrast Ratio and ultra-wide Visual Angle, can obtain high quality display effect at all angles, the product size ratio is 16:9, fully realize the real seamless splicing, is the best solution for large scene display in the micro-display era.
16:9 thin and light design, the screen takes up less space Nanoscale response, no shadow tailing phenomenon 3840Hz ultra-high refresh frequency, the picture display is delicate and smooth Broadcast level gray processing display, image details more rich Low heat output, good heat dissipation, super quiet High Brightness(cd/m2), high Contrast Ratio, excellent visual perception Super wide Visual Angle, can show high quality results in a variety of different angles Support complete front maintenance, support wall installation Screen life up to 100000h, low failure rate It can be spliced in any direction, and the picture is even without splicing

Model	LED Display Terminal	IV6312D
Module Composition	Pixel Composition	1R1G1B
	Led Packaging	SMD1010
	Pixel Pitch (mm)	1.25
	Module Resolution (W×H)	240×135
	Module Dimensions (W×H)(mm)	300×168.75
Cabinet	Unit Module Composition	2×2
	Unit Resolution (W×H)	480×270
	Unit Dimensions (W×H×D) (mm)	600×337.5×32
	Unit Weight (Kg)	4.5 kg
	Pixel Density (Points /m2)	640000
	Maintenance Mode	Front maintenance
	Protection Level	IP40(Customizable GOB to IP65)
	Cabinet Material	Die-cast aluminum
	Flatness	≤0.1 mm
Optical Parameters	Pixel Correction	Support Brightness(cd/m2) and chroma Pixel Correction
	Brightness(cd/m2)	600
	Color Temperature(K)	6500 (2000K ~ 9500K adjustable)
	Visual Angle	Horizontal 160°/ Vertical 160°
	Brightness Uniformity	≥98%
	Chromaticity Uniformity	±0.003Cx, within Cy
	Maximum Contrast Ratio	5000:1
	Blind Spot Rate	≤0.0001, zero at factory
Electrical Parameters	Peak Power Consumption (W/m2)	≤450
	Average Power Consumption (W/m2)	≤135
	Power Supply Requirements	AC 100-240V (50/60Hz)
Handling Performance	Driving Method	Constant current drive 1/45 sweep
	Frame Change Frequency	50/60Hz
	Refresh Rate (Hz)	≥3840
	Depth Of Processing (Bits)	14
	Brightness(cd/m2) Control	Manual/Automatic/Programmed
Usage Parameters	Typical Value Of Life (h)	≥100000
	Operating Temperature/Humidity Range	-10ºC - 40ºC / 10%-80%RH (non-condensing)
	Storage Temperature/Humidity Range	-20ºC - 60ºC / 10%-85%RH(non-condensing)

Note: The above parameters are typical values of the product. Different batches of products may vary. The actual parameters of the product are subject to the factory inspection report. The product will be continuously optimized and iterated during the production process, and the product specification sheet will be adjusted at any time. Consult regional distributors before purchasing. For customized products, the specification sheet needs to be reissued Company Profile

---
