Hydraulic Cargo Lift Platform Airport Platform Cargo Lift

Product Description

Product Description
Product Description
Cargo terminal lifting platform is a modular device for transport across the plane, which is mainly composed of transport platform, lifting mechanism, safety device, hydraulic system, electrical system and other components. The transition device or container logistics platform trailer plate convergence between the truck and cargo containers inside the station, for quick delivery of goods, the transfer provided a guarantee. Wherein a capacity of 7 tons lifting platform allows floor size of 3175 X 2438 mm below the container board, container for horizontal, vertical movement; and a capacity of 14 tons of lifting platform allows floor size of 6058 X 2438 mm or less Pallet, container for horizontal, vertical move.
Product Parameters
Product Specification

Dimensions(mm)	4260(L)*4050(W)*1450(H)	No rain shed
Work table(mm)	4250(L)*2800(W)
The highest work table arrive	1600-1750
The lowest work table arrive	500
Work table(full load 7T)	arise speed 15 sec	descend speed 10 sec
Work table(no-load)	arise speed 10 sec	descend speed 15 sec
Work table transmission speed	280sec	With adjustable speed device
Hydraulic pressure system work pressure	100-110	with adjustable pressure device
Hydraulic oil brand	wear-resistant 46#
Electric system work pressure	AC380V(electric)	DC 24V(system)
Entire vehicle weight(Kg)	6100	Theoretical arithmetic(+-5%)

Detailed Photos

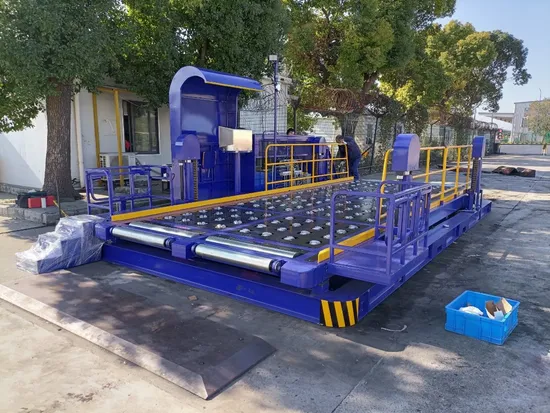

Product Picture
FAQ
FAQ:
Why choose us
1. We supply high quality products with reasonable price.2. We are the professional manufacturer3. Advanced Production machine;4. Strict quality control system;5. Ten people research&develop team;6. We have professional sales team;7. Experienced exporting for all over the world;8. We supply one-step solution service.

---
