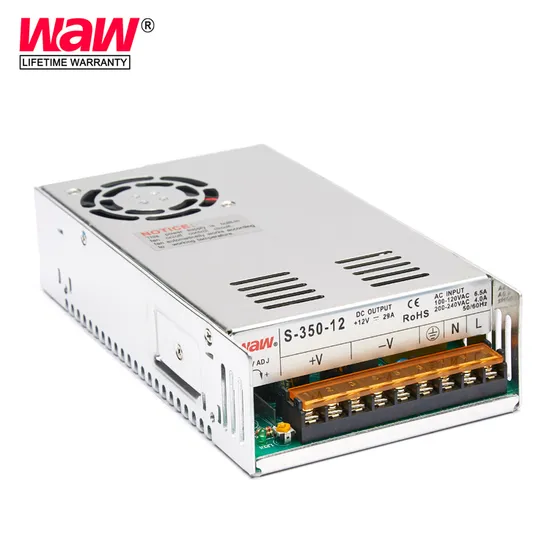

350W 12V 29A AC/DC Switching Power Supply with Ce and RoHS
| Model Specification | S-350-5 | S-350-12 | S-350-24 | S-350-48 |
| DC voltage | 5V | 12V | 24V | 48V |
| Rated output current | 50A | 29A | 14.6A | 7.3A |
| Output current range | 0~50A | 0~29A | 0~14.6A | 0~7.3A |
| DC power | 250W | 348W | 350.4W | 350.4W |
| Voltage adj.range | ±10% | ±10% | ±10% | ±10% |
| Voltage tolerance | ±2% | ±1% | ±1% | ±1% |
| Ripple and noise | 150mVp-p | 150mVp-p | 150mVp-p | 240mVp-p |
| Intet stability | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
| Load stability | ±0.1% | ±0.5% | ±0.5% | ±0.5% |
| AC voltage range | 90~132VAC/170~264VAC selected switch 47~63Hz 254~370VDC |
| Current | 6.5A/115V 4A/230V |
| Efficiency | 77% | 81% | 83% | 85% |
| AC Inrush current | 25A/115V 50A/230V |
| Leakage current | <3.5mA/240VAC |
| Overload | 105%~150% Type:pulsing hiccup shutdown Resete:auto recovery |
| Over-voltage | 115%~135% |
| 5.75-6.75V | 13.8-16.2V | 27.6-32.4V | 55.2-64.81V |
| High temperature | ERH3 ≥ 55°C Fan on,≤ 45°C Fan off,≥ 70°C,Cut down output(5~15V) |
| Setup rise hold up time | 200ms,100ms,20ms |
| Vibration | 10~500Hz,2G 10min./1cycle,Period for 60min,EACH AXES |
| Withstand voltage | Input and output interval,1.5KVAC,Input and enclosure,1.5KVAC,Output and enclosure,0.5KVAC |
| Isolation resistance | Input and output interval,Input and enclosure,Output and enclosure,500VAC/100M Ohms |
| Temperature coeffi cient | ±0.03%/°C (0~50°C ) |
| Working temperature and humidity | -10°C~+60°C,20~90%RH |
| Store temperature and humidity | -20°C~+85°C,10~95%RH |
| Overall dimension | 215*113*50mm 17PCS/CARTON |
| Weight | 0.94Kg |
| CE EMC Authenticate | EN55022:2010 EN61000-3-2:2006+AL:2009 EN61000-3-3:2008 |
| EN55024:2010 EN55015:2006+AL2007+2009 EN61547:2009 |
| CE LVD Authenticate | EN61347-1:2008T A1:2001 EN61347-2-13:2006 |
| EN60950-1:2006+A11:2009+A1:2010+A12:2001 |
| ROHS Authenticate | EPA3050B:1996 EN1122B:2001 EPA3052:1996 EPA3060A:1996 |
EPA7196A:1992 EPA3540C:1996 EPA8270D:2007 IEC62321:2008
|
