Q519 is a SIP Public Announcement system device for industry application. The media stream transmission adopts standard IP/RTP/RTSP protocols. It has various functions and interfaces, such as Intercom, broadcast and recording, to adapt different application environments. Users can DIY the paging device easily.
-- Exquisite, can be embedded in other equipment for internal installation -- 10W ~ 30W mono channel power amplifier output, according to the input voltage to setting the output power. -- Audio line in port, 3.5mm standard audio interface, plug and play. -- Audio line out port, expandable external active speaker. -- Support USB2.0 port and TF card slot for data storage or audio offline broadcasting. -- Adaptive 10/100 Mbps network port, integrated PoE -- Compatible with major platforms: Asterisk, Broadsoft, 3CX, Metaswitch, Elastix, Avaya etc.
Small and stylish,NiteRay Q519 is suitable for the limited space in most of the application scenarios.
Featuring rich interfaces, NiteRay Q519 can be developed into broadcasting devices, amplifiers, and intercoms to meet the different requirements.
Connected to the USB or TF card max to 32G, NiteRay Q519 can be used to do the MP3 offline local broadcast as well as the online broadcast.
Users can view the HD video image of the camera on the IP phone through NiteRay Q519, for monitoring the surrounding situation in real-time.

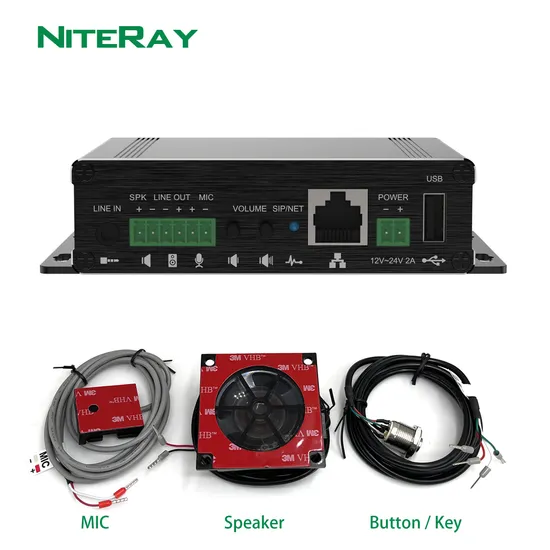

· 2 SIP Lines · 1 Speaker Interface and 1 Microphone Interface · 1 Audio in and 1 Audio out Interface · Support the USB or TF card Connectivity Max to 32G · 2 Interfaces of Programmable Keys with Indicator Light · 1 Blue LED Status Indicator Light · Support PoE (Class 4) · Support Desktop and Wall-mounted Mode
Generic
|
| ·SNTP
|
·2 SIP lines
|
| ·FTP/TFTP
|
·Speed dial
|
| ·HTTP/HTTPS
|
·Linkage with IP camera to realize video intercom
|
| ·TR-069
|
·Oral announcement of the IP address(in English)
|
|
|
·MP3 broadcasting
|
| Deployment & Management
|
·Support programmable DSS key ports
|
| ·Auto-provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP PNP/TR-069
|
·Support mono active speaker
|
| ·Web management portal
|
·Support audio line in
|
| ·Web-based packet dump
|
·Support TF card and USB flash drive
|
| ·Configuration export / import
|
·PoE enabled
|
| ·Firmware upgrade
|
|
| ·Syslog
|
Device Functions
|
|
|
·Auto-answering
|
| Physical Specifications
|
·Programmable DSS keys
|
| ·Keypad: 3 keys, including
|
·Through button or web page volume adjustment
|
| -2volume control keys (Up/Down)
|
·Network time synchronization
|
| -1 reset key (soft reset)
|
·Dynamic multicast function
|
| ·DC port x1: DC power input
|
·Support recording (through USB flash drive or server)
|
| -Port: 2 Pin terminal socket
|
·Action URL / Active URI
|
| ·RJ45 port x1: connect the network
|
|
| -PoE enabled
|
Call Functions
|
| ·Blue LED x1: (SIP status and network status)
|
·Call out / answer / reject
|
| ·Line in port x1: connect audio line input
|
·Call waiting
|
| -Port: 3.5mm standard audio port
|
·Intercom, Multicast
|
| ·Line out port x1: connect the active speaker
|
·Speed dial
|
| -Out: adjustable by volume, max up to1.2Vpp.
|
·Anonymous call (Hide caller ID)
|
| -Port: terminal socket
|
·Call parking/pick-up (depending on server)
|
| ·MIC in port x1: connect the MIC
|
|
| -Electret condenser MIC is recommended
|
Audio
|
| -Sensitivity: - 38dB, impedance 2.2k ohm, bias voltage 2.54Vpp
|
·Narrowband codec: G.711A/U, G.729A/B
|
| -Port: terminal socket
|
·Wideband codec: G.722, Opus
|
| ·Passive speaker port x1: connect the speaker
|
·Full-duplex hands-free speakerphone with AEC
|
| -Output power: 4Ω, PoE/10W, 12V/10W, 18V/20W, 24V/30W; related to power supply voltage.
|
·DTMF: In-band, Out-of-Band (RFC2833/ SIP INFO)
|
| -Wire diameter: 18AWG or higher.
|
|
| -Port: terminal socket
|
Network
|
| ·DSS keys port x2: connect the external buttons (support LED)
|
·Physical: 10/100 Mbps Ethernet
|
| -LED: Output 5.0Vdc/5mA.
|
·IP mode:IPv4/IPv6/IPv4&IPv6
|
| -Port: 8 pin terminal socket
|
·IP configuration: Static IP / DHCP / PPPoE
|
| ·TF card slot x1: connect TF card
|
·VPN: L2TP / OpenVPN
|
| ·USB 2.0 port x1: Connect USB flash drive, broadcast local audio files.
|
|
| ·DC power input: DC12V~24V/2A
|
Protocols
|
| ·PoE level: Class 4
|
·SIP v1 (RFC2543), v2 (RFC3261) over UDP/TCP/TLS
|
| ·Working temperature: -20ºC ~ 50ºC
|
·RTP/RTCP/SRTP
|
| ·Storage temperature: - 30ºC ~ 60ºC
|
·STUN
|
| ·Working humidity: 10~95%
|
·DHCP
|
| ·Installation: Desktop stand / Wall-mounted
|
·IPv6
|
| ·Color: black
|
·PPPoE
|
| ·Device dimensions: 125x84.2x31 mm
|
·L2TP
|
| ·Gift box dimensions: 147x114x58 mm
|
·OpenVPN
|
| ·Outer CTN dimensions: 310x248x322 mm (20 PCS)
|
