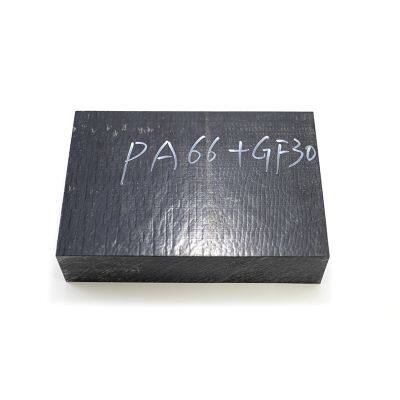

Modified Material PA66+GF Sheet Rod Tube Extrusion Plastic Sheet

Product Details

Product Description

Product Description

Base Polymer	Polyamide 66
Filler/Additive System	GF30
Special Features	improved sliding / wear
Market Segment	Automotive,Machinery
Application Area	injection moulded parts
Typical Applications	functional components,bearings and sliding elements

Mechanical properties	Test Method(ISO/IEC)	Unit	Numeric
Tensile strength at break	DIN EN ISO 527	Mpa	160/140
Elongation at break	DIN EN ISO 527	%	3/5
Tensile modulus of elasticity	DIN EN ISO 527	Mpa	8000/7500
Hardness	ISO 2039/1	-	175
Impact strength	DIN EN ISO 179	KJ/	40

Thermal properties	Test Method(ISO/IEC)	Unit	Numeric
Glass transition temperature	DIN 53 765	ºC	72/5
Heat distortion temperature	DIN 53 765	ºC	250

Other properties	Test Method(ISO/IEC)	Unit	Numeric
Density	DIN 53 479	g/cm³	1.35

Material	Brand	Size (Rod)	Services	Application
PA66+GF30	MBH	T 5 10 20 30 35 40 50 60 70 80 90 100 or customized	sheet/rod/profile extrusion and machining	sliding/wear/bearing area

Ningbo MBH, Founded in 2012, with its headquarters in Stuttgart, Germany, is a supplier of special engineering plastic application solutions in Ningbo, including all kinds of customized plastic extrusion and parts CNC machining.
we have for example extruded PEEK, PFA, PEI, PVDF, PCTFE, POM etc, or we could help modify the materials as your requested. our production and processing department has accumulated years of experience, providing comprehensive product design, processing, installation, and usage consultation to global customers.
Material Including:
High-Temperature resistance Material:
PBI,PEEK,PI,PAI,PEI,PPSU,PES,PSU,PPS,LCP etc.
Engineer Plastic:
POM,PA,PPA,UPE,POK,PPO etc.
All series of Fluoropolymer Thermoplastic:
PTFE,PVDF,PFA,ECFTE,PCTFE,ETFE,FEP etc.
Elastomeric Material:
TPU (moulding concreted), TPU(thermoplasticity), TPEE etc.
Other specific special functional Material:
TPX,COP,COC etc.
Other customizable modified Material by filling aramid fiber, carbon fiber, carbon nano-tube, PBO, molybdenum disulfide, PTFE, mineral, glass fiber, ceramic, boron nitride, silicon nitride etc.

---
