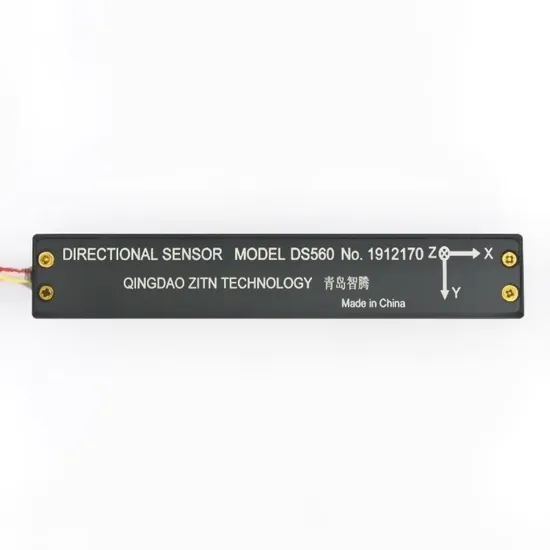

Miniature Directional Sensor DS560/ DS580 The DS560 directional module is designed to enable high accuracy measurement of the roll, axis alignment and azimuth orientation angles in borehole logging and drilling applications.
Using 4.9-12V DC voltage power supply and adopting UART asynchronous transmitter for digital transmission. It consists of 3-axis fluxgate magnetometers and 3-axis MEMS accelerometers.
The DS560 communicates with the outside world over a UART interface. It is compatible with TTL through logic level, and the baud rate is normally set at 9600~115200 to operate. The user can change baud rate by setting data bits in E2PROM. Logic level 5V(customization), data update rate once per second. Product Parameters

SN	Items		Value
1	Input Voltage Range		+5~+12V
2	Input Current		30mA
3	Temperature Range (temperature compensation)		-40ºC~135ºC
4	Inclination Range		0°~180°
5	Azimuth Range		0°~360°
6	Roll (Toolface) Range		0°~360°
7	Inclination (Drift)		±0.1°
8	Azimuth	Inclination≥5°	±2°
		Inclination≥10°	±1°
		Inclination=90°	±0.3°
9	Roll (Toolface)		±0.2°
10	Logic Level		TTL/CMOS(+5V)
11	Baud Rate		9600~115200
12	Leads		20"×4
13	Data output speed		16 Samples/sec(Baud rate is 115200)

Pin Name	Wire Color	Function
VIN	Red	+5~+12VDC
GND	Black	Ground
RX	Orange	Serial In
TX	Yellow	Serial Out

Product Details:Applications
Product applications
Borehole Deviation Measurement;
Wireline Logging;
Platform testing;
Electronic compass;
Drillied well measurement;
Geological surveying.
Telecom communication testing system etc...
High accuracy, cost-effective price, stable performance.
