US$20,000.00-50,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Movement Method
Linear Control
Control Method
Semi-Closed Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
High-End CNC Machine Tools
Certification
CE, ISO 9001
Transport Package
Standard Export Packing
Specification
2600*1950*2400mm
Trademark
Alpha industries
Production Capacity
100 Sets/Year
Product Description
Product Parameters

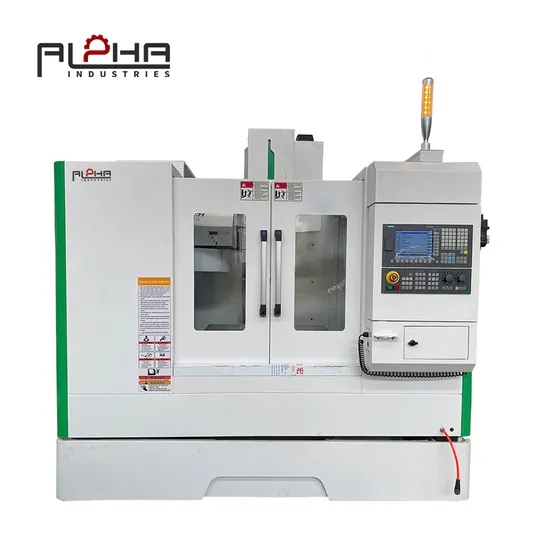

| Model | VMC600 |
| Main Motor Power KW | 5.5KW |
| Spindle Max. Rotating Speed | Servo Spindle 8000rpm |
| Z Motor Torque | 15N.m |
| X Motor Torque | 6N.m |
| Y Motor Torque | 6N.m |
| Spindle Taper | BT40 |
| Worktable Size | 800X320mm |
| Travel(Longitudinal X/Horizontal Y/Vertical Z) | 600X400X450mm |
| Distance of Spindle Axis to Guideway Plane | 350mm |
| Distance of Spindle End to Worktable | 80-530mm |
| The Vertical Permissible Error of Spindle Axis to Worktable Plane | ≤0.02mm |
| Positioning Accuracy | 0.02mm |
| Repeated Positioning Accuracy | 0.01mm |
| Machine Overall Dimension (L*W*H) mm | 2600*1950*2400 |
| Machine Net Weight KG | 2800 |
| System Configuration | Siemens 808D/ |
| GSK218/FANUC/mitsubishi M80 |
| External Protection Level | Full Closed |
| No. | Name | Specification | Qty. |
| 1 | Qualified Certificate | VMC600 | 1 |
| 2 | Accuracy Inspection List | VMC600 | 1 |
| 3 | Connection & Test Manual | | 1 |
| 4 | User Manual | | 1 |
| 5 | Packing List | VMC600 | 1 |
| 6 | Spanner | | 1 |
| 7 | Allen Wrench | Set | 1 |
| 8 | Timing Belt | | 1 |
| 9 | Milling Chuck | BT40 | 1 |
| 10 | Drawbar | | 1 |
| 11 | Oil Gun | | 1 |
| 12 | Iron Cushion | | 4 |
| List of Partial Sourcing List |
| No. | Name | Standard Configuration |
| 1 | Ball Screw | Jiangshu qijian |
| 2 | Spindle Unit (Optional Accessories) | Taiwan Danquan |
| 3 | Electric System | Chang'an Electric |
| 4 | Oil Pump | China South Pump |
| 5 | Working Lamp | Tengzhou Sanying Electric |
| 6 | System | Siemens,Great, Huazhong, GSK and KND |
| 7 | Cylinder (Optional Accessories) | Wuxi Xieqing |
| 8 | Flange Bearings (P5) | Haerbin |
| 9 | Tool Magazine | Taiwan DYSO |
| 10 | Line guide rail | Taiwan HIWIN |
| Spindle unit 8000rpm | GSK 218 control system | Rigid tapping |
| Taiwan HIWIN screw | Adjustable block | Move the hand vein |
| Centralized automatic oil lubrication | External cooling system and water tank | Simple oil-water separation device |
| Full protection sheet metal shield and rail shield | Taiwan HIWIN linear guideway | Tubular work lights, warning lights |
| 12 tools magazine | Spindle servo motor: | machine total power 11KW |
| funnel type | speed 8000rpm |
| System:Siemens 808D | Fanuc 0i-mf | Mitsubishi M80 |
| 16 tools magazine arm type | | |
Company Profile
Certifications
Exhibition
Packaging & Shipping
FAQ
FAQs
Q1: How is the warranty?
A1: Warranty time is 15 months after BL date.
Q2: Can we visit your factory before order?
A2: Sure. All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3: Do you have a stock?
A3: We have stock for popular models, we produce according to order.
Q4: What's the MOQ?
A4: One set only.
Q5: How about your quality?
A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 40 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6: Do you have professional engineers?
A6: Yes, we have professional engineers and designers. We can provide OEM services under Alpha brand.
Q7: Can you provide customized machines?
A7: Yes, we can design and manufacture according to your specific requirements.
>>
