3 Axis 4 Axis 5 Axis Vmc850 China Vertical CNC Machining Center CNC Milling Machine

Product Description

3 Axis VMC850 China Vertical CNC Machining Center CNC Milling Machine

Model		VMC850
Travel	X axis	800mm
	Y axis	500mm
	Z axis	500mm
	Spindle nose to table	120-650mm
	Spindle nose to column	580mm
Feed	Max. X rapid feed	24m/min
	Max. Y rapid feed	24m/min
	Max. Z rapid feed	15m/min
	Cutting feed	1-10000mm/min
	Torque	10/10/15N.m
Table	Table size	1000x500mm
	Max. load	600kg
	T slot	3-18-150mm
Spindle	Type	Belt
	Speed	50-8000rpm
	Spindle bore	150mm
	Spindle taper	BT40
	Pull stud	MAS403-40BT-1
	Spindle motor synchronizing wheel	Taiwan
	Spindle belt	Taiwan
	Main motor	7.5/11kw
Acuracy	Positioning Accuracy (JIS)	±0.015/300mm
	Repeatibility (JIS)	±0.0075mm
Machine	Size	2800×2350×2650mm
	Weight	5200kg

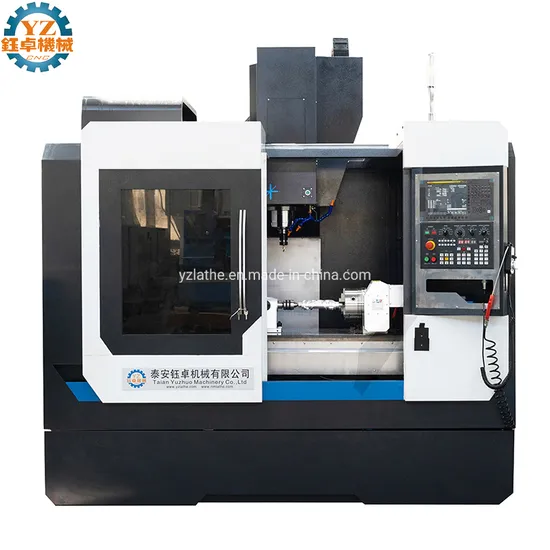

Machine Images
Company Information
Taian Yuzhuo Machinery Co., Ltd. ( or "YZ CNC" for short) is a professional manufacturing enterprise engaged in the
research, development, production, sale and service of CNC machines.
Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available
to discuss your requirements and ensure full customer satisfaction.
Our main products are as below:
* Wheel Repair CNC Lathe Machine
* Vertical CNC Lathe Machine
* Horizontal CNC Lathe Machine
* Slant Bed CNC Lathe Machine
* Universal Lathe Machine
* Pipe Threading CNC Lathe Machine
* CNC Milling Machine
* CNC Vertical Machining center
All the above products have passed CE, SGS certificates.
Our Strength
* Over 18 years manufacturing experience in CNC lathe machine.
* Quality is the life of our company, and we offer you the best high value added machines.
* Export CNC machine tools to all over the world, especially to UK, US, Europe and Middle East countries.
* Customer service is the power that drives our company forward.
CE Certifications
Foreign Customers
Contact Us
If any interest about our cnc lathe machine, cnc milling machine or cnc vertical machining center, please just contact us freely.
And we warmly welcome you to visit our factory at any time, thank you.

---
