US$1,450.00-1,550.00
|
1 set
(MOQ)
|
Basic Info.
Number of Cylinder
Binoculars
Principle of Optics
Optical
Total Magnifications
4.8X, 8X, 12.8X, 6X, 10X, 16X
Specification
CE, FDA, ISO9001
Production Capacity
100000PCS/Year
Product Description

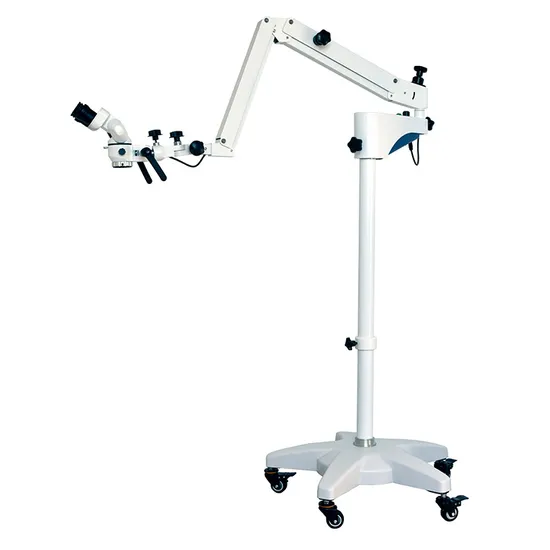

Ophthalmic operation microscope
YZ-180 Feature
1).using LED light source for coaxial illumination,
2).with 0-180° inclinable binocular
3).3-step magnification changer, have different working distance and magnification.
4).It is featured for flexible handling and easy operation
5).It is sued for micro-operation in dental especially, and can be used for micros-operation in ophthalmology, ear-nose-throat, gynecology and surgery.
Technical Data
Magnification of binocular: 8X
Binocular: 0-180° inclinable
Magnification of eyepiece: 12.5X
Interpupillary distance: 50mm-80mm
Diopter: ±7D
Focal length of objective: F=200mm and F=250mm two objectives
Magnification changer: 3-step: 0.6X, 1X, 1.6X
Total magnification: 4.8X, 8X, 12.8X, 6X, 10X, 16X
Linear field: 50mm, 30mm, 19mm, 40mm, 24mm, 15mm
Fine focusing distance: 10mm
Illumination: Coaxial illumination with 10W LED lamp light source, brightness adjustable, illumination>40000lx
Filter: Build-in green and yellow filters
Balancing arm: 2-part arm with universal joints, counterweight adjustable and can be locked
Floor stand: 2-part column fitted on the five-star base with casters
Power supply: AC100V-AC240V
Optional accessories: Beamsplitter, Video camera adapter, Demonstrator, Camera (U3CMOS03100KPA, XCAM1080PHA, WUCAM0720PA, ICMOS03100KPA, VGA200, WK-73X10, WK-73X10H), SLR camera adapter, Monitor (S22E360H, S22F350FH, P72P), Eyepiece 10X, Objective F=300mm & F=400mm, F=200mm-300mm zoom objective, Table mount clamp, Wall mount bracket, GM112B Monitor mount
Table of Optical Characteristics for YZ-180 Operation Microscope:
|
Magnification of eyepiece
| 12.5X/20mm
|
Focal length of objective
| F=200mm
| F=250mm
| F=300mm(optional)
| F=400mm(optional)
|
Magnification on handwheel
| 1.6X
| 1X
| 0.6X
| 1.6X
| 1X
| 0.6X
| 1.6X
| 1X
| 0.6X
| 1.6X
| 1X
| 0.6X
|
Total magnification
| 16X
| 10X
| 6X
| 12.8X
| 8X
| 4.8X
| 10.7X
| 6.7X
| 4X
| 8X
| 5X
| 3X
|
Linear field (mm)
| 15
| 24
| 40
| 19
| 30
| 50
| 23
| 37
| 60
| 30
| 48
| 80
|
Diameter of spot (mm)
| 57
| 71
| 86
| 113
|
Exit pupil distance (mm)
| 20
|
Table of Optical Characteristics for YZ-180 Operation Microscope:
|
Magnification of eyepiece
| 10X/23mm (optional)
|
Focal length of objective
| F=200mm
| F=250mm
| F=300mm(optional)
| F=400mm(optional)
|
Magnification on handwheel
| 1.6X
| 1X
| 0.6X
| 1.6X
| 1X
| 0.6X
| 1.6X
| 1X
| 0.6X
| 1.6X
| 1X
| 0.6X
|
Total magnification
| 12.8X
| 8X
| 4.8X
| 10.2X
| 6.4X
| 3.8X
| 8.5X
| 5.3X
| 3.2X
| 6.4X
| 4X
| 2.4X
|
Linear field (mm)
| 16
| 26.5
| 43
| 20
| 33
| 53
| 24.5
| 39.5
| 64.5
| 32
| 52.5
| 85.5
|
Diameter of spot (mm)
| 57
| 71
| 86
| 113
|
Exit pupil distance (mm)
| 25
|
>>
