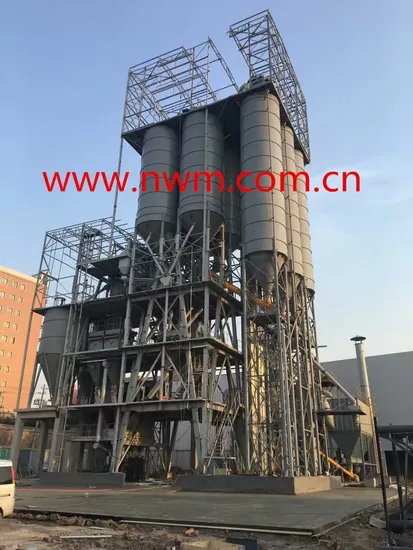

20tph Tower Type Tile Adhesive Mix Plant

Product Description

Shanghai Newwall Machinery has provided tile adhesive mixing plant since 2003, during 15 years, we have finished over 200 tile adhesive batch plant at home and abroad. We provide turnkey projects, which include plant design, machine manufacturing, installation and formulation.
the tile adhesive batch plant main consists of the following parts:
Sand dryer and screen, material store silo, screw conveyor, weighing system, bucket elevator, mixer, end product silo, packing machine and stacker, dust collector and control system. The productivity is 5-80T/h.
According to the structure type, it can be classified into tower type, series type and workshop type. It is up to the character of raw materials and workshop situation. The needed area is 500~5000m2.

Model	Full volume (m3)	Load coefficient	Power (kw)	Rated speed (r/min)
WZ-0.5	0.5	0.4~0.6	5.5	58
WZ-1.0	1.0	0.4~0.6	11	51
WZ-2.0	2.0	0.4~0.6	18.5	43
WZ-3.0	3.0	0.4~0.6	22	38
WZ-4.0	4.0	0.4~0.6	37	38
WZ-6.0	6.0	0.4~0.6	45	34
WZ-8.0	8.0	0.4~0.6	55	29
WZ-10.0	10.0	0.4~0.6	75	29

---
