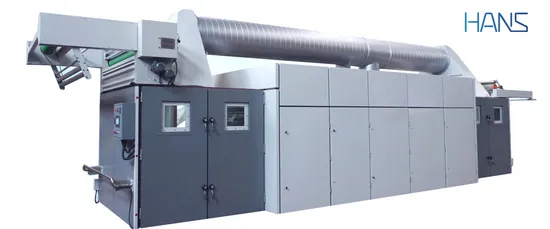

Gas Heated Tumble Soft Drying Equipment for Knit Fabric

Product Description

CONTINUOUS TUMBLE DRYER
Features:
1. The upper and lower blower speed, exhaust blower speed, entry and exit speed, temperature and fabric duration time inside the chamber, all
are adjustable according to different textile material and process requirement
2. Loading capacity in chamber and hitting times can be setted by means of fabric weight and timing
3. All parameter including air flow, exhaust flow, machine speed, capacity can be set and monitored on color touch screen controller
4. Automatic cleaning device for machine continuous running without machine stoppage
5. Fabric movement is driven by air flow, low tension treatment
6. Perfect hand feel with continous beating the ss fence.
7. The continous tumble dryer is designed as monoblock body structure. By means of strengtened fan structure and venturi tube, when
motor fully running, fabric will be carried by air to beating the baffle, which helps to improve the hand feel and back to natural feeling.
Specification:

MODEL	AIR-X
Machine width	2000-3600mm
Working width	1800-3400mm
Heating source	Natural gas, thermal oil, steam
Machine running speed	3-50m/min
Application	Suitable for woven, upholestry, printed, terry towel, fleece etc
Chamber/cabin	2 chamber each set

1. Machine width: 1800mm-3200mm
2. Speed: 3-50m/min
3. Heating system: Natural gas/ steam/ Thermal oil
4. Max. temperature: 150ºC with steam heating
170ºC with gas/ oil heating
Tumbling Process:

---
