Stg600 Economic China Manufacturer Tool Grinding Grinder Machine

Product Description

Product Description

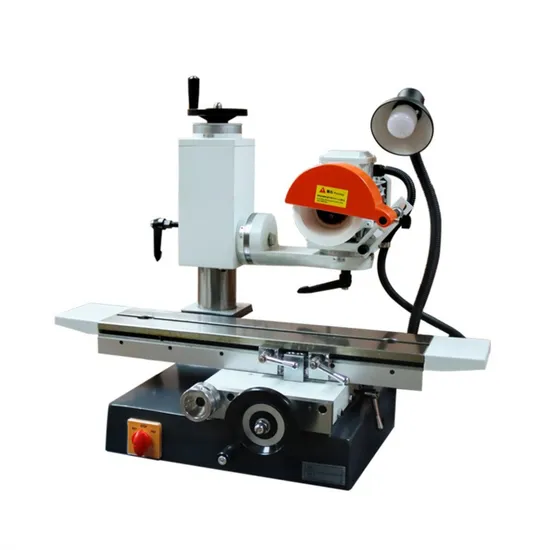

Universal cutter grinding machine features
1.The workbench of this machine uses precision screw slide bells and high-precision dovetail guide rails, ensuring smooth and lightweight operation of the bed. Compact structure and precise transmission. All Morse spindles in the attachment are finely processed by machining centers to ensure the accuracy of tool grinding.
2.The motor can rotate 360 °, when grinding tools of different materials with two grinding wheels on both sides, as long as the grinding wheel head is rotated, it can start grinding without the need to replace the grinding wheel. This can increase safety and reduce the exchange and repair time of the grinding wheel, increasing the controllability of tool grinding.
3.This machine uses high-strength FC30 cast iron to maintain mechanical accuracy for a long time. Mainly used for grinding various cutting tools. It has multiple functional accessories, and users can choose and configure accessories reasonably according to the requirements of grinding tools.
4.This machine can be equipped with various accessories to grind various cutting tools: this machine can grind various end mills, end mills, R-type milling cutters, cylindrical milling cutters, three sided edge milling cutters, single angle milling cutters, reamers, turning cutters R-type turning cutters, hobbing cutters, drill bits, taps, engraving cutters, powerful cutting tools, circular cutting cutters, and other types of cutting tools.
Accessories optional
Product Parameters

Universal cutter grinding machine main parameters
Items	STG600	Unit
X-axis travel	270	mm
Y-axis travel	170	mm
Worktable size	600*130	mm
Grinding wheel head travel	140	mm
Rotation angle of grinding wheel head	360	°
Grinding wheel size	Φ125*Φ50*32	mm
Grinding wheel speed	2800	rpm
Power	550	w
Gross weight	120	kg
Size	75*65*65	mm
