Wanlong Granite Marble Stone Manual Edge Cutting Machines

Product Description

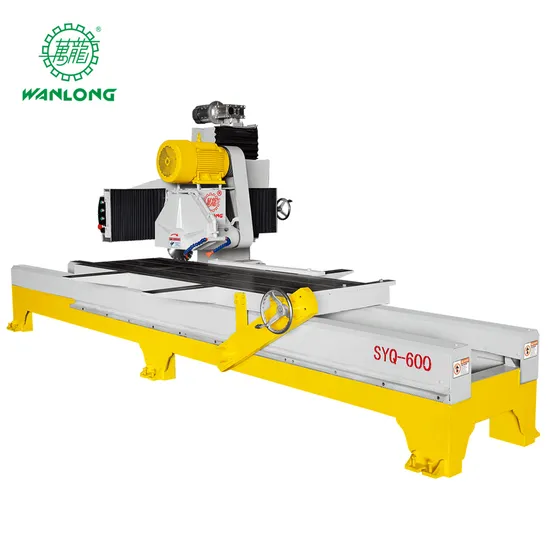

SYQ-600 manual stone cutting machine:
This machine is for slab cutting, and equipped with guid rail of oil-impregnation sealed type and main shaft of oil lubrication type. The compact structure makes cutting easier. Function of chamfering is optional.

Model	Unit	SYQ-600
Max. diameter of blade	mm	350-600
Main motor power	kw	11-15
Table dimensions	mm	3000x730
Max. cutting size(LxWxH)	mm	3000x1200x180
Overall dimensions (LxWxH)	mm	4900x2200x170
Water consumption	m3/h	2
Approximate weight	kg	2500

Features:
1. Compact structure design with solid steel base
2. Cutting head can rotate ±45°
3. Vertical and horizontal movement of the cutting head is driven by precise screw rod which provides high cutting accuracy
4. Sealed type oil-impregnated guide rails make the worktable move more flexibly and
Smoothly
5. High quality electric parts make the whole control system reliable and durable
6. CE certificated
Company Information:
Diamond tools: Wanlong's mission is to make no stone hard to cut in the world, to help customer save production costs. More than 20 years in the line of diamond tools industry, Wanlong's technological innovation improves the cutting efficiency, and save the cost for end-users.
Stone Industry: Wanlong developed Aluminum Plastic Laminated Panel, Honeycomb Laminated Panel, Ceramic Thin Marble Panel, Fiberglass Thin Granite Panel, Fire Proof Thin Granite Panel and other new stone products. Not only save stone (3-5mm super thin stone, the original 1-3cm reduced to 3-5mm), but also let stone products have properties (impact resistance, high-temperature resistant, fire resistant, light weight, large single size 140x280cm ), expanding the application of the stone (high-rise building interior wall decoration, airplane and yacht interiors).
Machinery: Wanlong mechanical's mission is to provide customers with advanced technology solutions for efficient tools production. 26 years' practical experience in stone machinery industry contributes to rich experience and Technological advantage of diamond tools. Wanlong machinery will fit the needs of customers with more sophisticated services to fulfill the mission.

---
