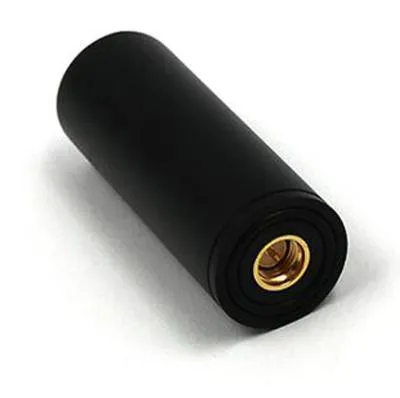

Superior Waterproof and Dustproof Design Uav Helix Antenna

US$18.99
5-99 Pieces
US$18.60
100+ Pieces

Basic Info.

Model NO.
LJ-HEA37A
Nature of Operation
Transmitting Antenna
Operating Wavelength
Microwave
Polarization
R.H.C.P
Sturcture Form
Wire Antenna
Usage Occasion
Drone
VSWR
≤2.0
Operating Voltage
3.3~12V
Operating Current
≤30mA
Impedance
50 Ohm
Frequency
1207 MHz~1602 MHz
Passive Gain
2dBi
Lna Gain
40±2dB
Noise Figure
≤1.5dB
Weight
25g
Waterproof Grade
IP67
Base Antenna
Sihuan Array Antenna
Dimensionality
Two-Dimensional Antenna
Usage
Positioning and Measurement Antenna
Transport Package
Carton
Specification
Φ 27.3× 58.6mm
Trademark
LIJIE
Origin
China
HS Code
8529109090
Production Capacity
120K PCS/Daily

Product Description

Product Description
Product : helix antenna
Product model: LJ-HEA37A
Product description: including GPS, BD, GNASS satellites,Strong capability of tracking satellites at low elevation angle
Scope of application: smart agriculture, surveying, monitoring, navigation
Model No LJ-HEA37A
Impedance 50 OHM
Frequency 1207 MHz ~1602 MHz
VSWR ≤2.0
Passive Gain 2dBi
Polarization R.H.C.P
LNA Gain 40±2dB
Noise figure ≤1.5dB
Operating voltage 3.3~12V
Operating current ≤40mA
Weight 25g
Waterproof grade IP67

Detailed Photos
Company Profile

Certifications

Contact
