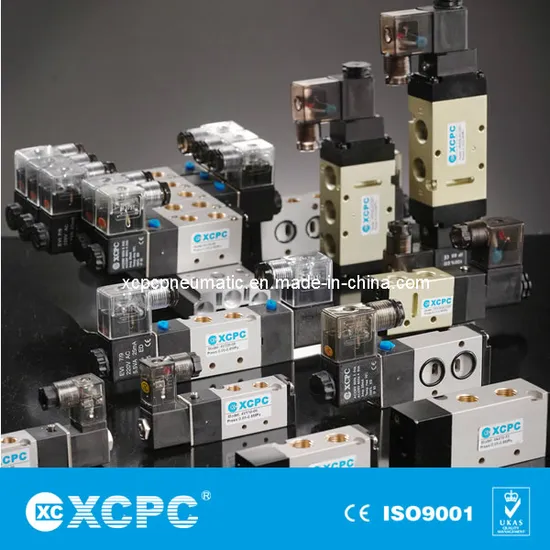

Manufacturer Supplier China Airtac SMC Automatic Directional Control Direction Pneumatic Air Solenoid Valves

Product Description

1. Features:
1). Pilot-oriented mode: Optional for internal or external.
2). Structure in sliding column mode: Good tightness and sensitive reaction.
3). Double control solenoid valves have memory function.
4). Internal hole adopts special processing technology which has little attrition friction, low start pressure and long useful life.
5). No need to add oil for lubrication.
6). Affiliated manual devices are equipped to facilitate installation and debugging.
7). Several standard voltage grades are optional
8). Intergrate with the manifold to save installation space.
Ordering Code
2. Specifications:

Model	4V210-06	4V220-06	4V230C-06	4V230E-06	4V230P-06	4V210-08	4V220-08	4V220-08	4V230C-08	4V230E-08
	4A210-06	4A220-06	4A230C-06	4A230E-06	4A230P-06	4A210-08	4A220-08	4A220-08	4A230C-08	4A230E-08
Position and Way NO.	Two-position Five-way		Three-position Five-way			Two-position Five-way		Three-position Five-way
Effective Sectional Area	14mm²(CV=0.78)		12mm²(CV=0.67)			16mm²(CV=0.89)		12mm²(CV=0.67)

Model	3V210-06	3V220-06	3A210-06	3A220-06	3V210-08	3V220-08	3A210-08	3A220-08
Position and Way NO.	Two-position Five-way				Two-position Five-way
Effective Sectional Area	14mm²(CV=0.78)				16mm²(CV=0.89)
Joint Pipe Bore	Air Inlet=Air Outlet=Exhaust=G1/8"				Air Inlet=Air Outlet=Exhaust=G1/8"
Working Medium	40 Micron Filtered Air
Motion Pattern	Inner Guide Type
Working-Pressure	0.15~0.8MPa
Max.Pressure Resistance	1.2MPa
Operating Temperature	5~50ºC
Voltage Range	±10%
Power Consumption	AC:2.5VA DC:2.5W
Insulation & Protection Class	F CIass.IP65
Wiring Form	Lead Wire or Connector type
Highest Action Frequency	5 Cycle / Second
Shortest Excitation time	0.05 Second

NO

Designation

NO

Designation

NO

Designation

NO

Designation

NO

Designation

NO

Designation

NO

Designation

1

Connector

4

Active Amature

7

Body

10

Screw

13

O-Ring

16

Spring

19

Spring

2

Nut

5

Steel Part

8

Wearing

11

Spring

14

Spool

17

Pin

20

Side Cover

3

Coil

6

Piston

9

End Cap

12

Seal ring

15

O-Ring

18

Spring Seat

21

Spring Seat

NO	Designation	NO	Designation	NO	Designation	NO	Designation
1	Air control cover	4	Valve body	7	Spring	10	Spring Seat
2	Piston	5	Spool	8	Rear cover	11	C-type buckle
3	Screw	6	O-Ring	9	Back seat

1). Model:3V100, 3V200, 3V300, 3V400
2). Position and way: 2 position 3 way
3). Fluid: Air(to be filltered by 40 micron filter element)
4). Port size: M5, 1/8", 1/4", 3/8", 1/2"
5). Motion pattern: Inner Guide type
6). Working pressure: 0.15~0.85MPa
7). Max. Pressure resistance: 1.2MPa
8). Opertating temperature: 5~50º C
9). Voltage range: ± 10%
10). Power consumption: AC: 2.5VA; DC: 2.5W
11). Insulation&Protection Class: F class. IP65
12). Wiring Form: Lead wire type or connector type
13). Shortest Excitation Time: 0.05 Second
14). Highest Action Frequency: 5Cycle/Second
XCPC is your Best choice in Pneumatic!

---
