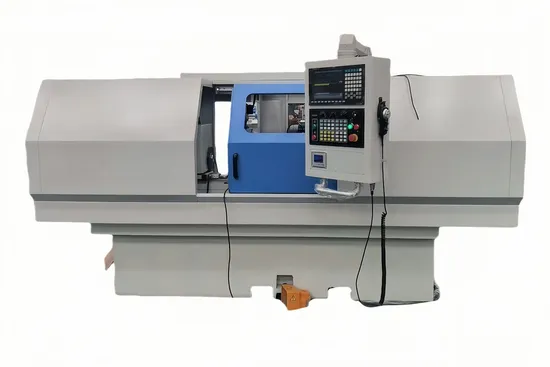

Ucg 32150nc Professional High Percision Smart Servo External and Inner Grindwheel Processing Universal Cylinder Grinder Grinding Machine

Product Description

Product Description

What extra equipment you can get from the servo grinding machine?
X Z axis servo motor and ball screw
HMI (colorful touch screen)
X Z axis MPG
PLC controller
Luxury semi-closed safe guard
Built-in processing menu
Spindle unit with high precision and maintenance-free
The machine adopts T structure: grind wheel head make cross movement along rear linear guide way of the body (X axis), and the work table make longitudinal movement along the front V-F guide way of the body (Z axis).
Detailed Photos
Product Parameters

Item	Model	UCG 2060NC	UCG 2080NC	UCG 32100NC	UCG 32150NC
Working Capacity
Center Height	mm	135	135	180	180
Grinding Diameter (External)	mm	800~200	800~200	800~320	800~320
Grinding Length (External)	mm	600	800	1000	1500
Grinding Hole Diameter (Inner)	mm	25~100	25~100	25~100	25~100
Grinding Depth (Inner)	mm	125	125	125	125
Maximum Workpiece Weight	kg	100	100	100	100
Working Table ( Z Axis )
Worktable Travel	mm	700	900	1200	1700
Worktable Rapid Feed Speed	mm/min	1~6000	1~6000	1~6000	1~6000
Worktable Fine Feed Rate	mm	0.005	0.005	0.005	0.005
Worktable Swivel Range	deg	-2~9	-2~9	-2~9	-2~7
Grinding Wheel Head ( X Axis )
Wheelhead Cross Travle	mm	205	205	265	265
Cross Feed Rapid Speed	mm/min	1~6000	1~6000	1~6000	1~6000
Cross Feed Rate	mm	0.001	0.001	0.001	0.001
Wheelhead Swivel Range	deg	-10	-10	-10	-10
Wheelhead Spindle Speed	r/min	2140	2140	2140	2140
Grinding Wheel Dimensions	mm	400*50*203	400*50*203	400*50*203	400*50*203
Grinding Wheel Peripheral Speed	m/s	45	45	45	45
Workhead
Spindle Speed Range	r/min	26~500	26~500	26~500	26~500
Workhead Swivel Range	deg	0~90	0~90	0~90	0~90
Center Taper	MT	#4	#4	#4	#4
Tailstock
Quill Manual Travel Range	mm	30	30	30	30
Center Taper	MT	#4	#4	#4	#4
Quil Engine Drive Mode		pneumatic	pneumatic	pneumatic	pneumatic
Motor
Wheelhead Spindle Motor	kw	4	4	4	4
Workhead Spindle Motor	kw	0.75	0.75	1.5	1.5
X/Z Axis Drive Servo Motor	kw	1.5	1.5	1.5	1.5
Coolant Pump	kw	0.09	0.09	0.125	0.125
Total Power Capacity	KVA	11	11	12	12
Machine
Floor Space	cm	400*250*200	440*250*200	480*280*200	580*280*200
Package Dimensions	cm	345*210*180	385*210*180	425*220*180	525*220*180
Machine Weight	kg	3400	3700	4000	4500
Inner Grinding Device
Spindle Motor Power	kw	1.1
Spindle Speed	r/min	10000
Grindwheel Dimensions	mm	30*25*10

Packaging & Shipping

Installation Instructions
The major pars such as machine body, work table, are all high grade casting piece. Optimization design(FEA) is the key to improve the machine precision and rigidity. All new designed machine structure make it with great excellent working performance.


The work table make longitudinal movement along front slide way of machine body, V-F slide way is adopt and coated with TF wearable material belt, be precision scraped by manual. The motion is drove by Ac servo motor and ball screw and can realize various kinds of feed mode: travel set, manual
feed, rapid feed and auto. Feed.
The work table consist of upper table and nether table, the upper table can make clockwise or anticlockwise rotation for grinding taper surface.
The work head and tail stock are located on the table, for clamping and rotating workpiece.
FAQ
If you are fed up with complexity hard work on traditional cylinder grinder?

If you are fed up with "oil leakage, coolant splashing around field" ?

If you are helplessness with these fault of complexity mechanical/hydraulic apparatus?

If the CNC machine is difficult for your operation? And you have not any experience on G code program?

YES, WE ARE ALSO FED UP WITH ALL THSE TROUBLES!

THIS IS WHY WE DESIGNED THE SMART SERVO GRINDING MACHIEN FOR YOU!

---
