US$75,000.00-80,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Certification
RoHS, ISO 9001:2000, ISO 9001:2008, CE
Suitable for
Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel
Accuracy of Bending Angle
±1°
Accuracy of Feeding Length
±0.1mm
Clamping Method
Sucked or Pressing
Transport Package
Pallet, Foam and Plastic Film
Specification
5900* 2900* 3200MM
Production Capacity
300 Sets/Year
Packaging & Delivery
Package Size
1203.00cm * 235.00cm * 239.00cm
Package Gross Weight
18500.000kg
Product Description

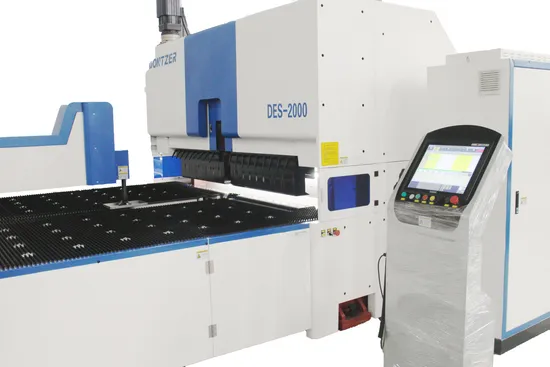

Doblado de placa de acero de 1400 mm / Maquinaria automática de doblado CNC/ Máquina de freno de prensa para acero metálico, carbono,aluminio acero
Product Parameters
| Model | DES-1200 | DES-1400 | DES-2000 | DES-2500 |
| Max. Continuous Bending Speed | ≤0.5sec/each bending | ≤0.2sec/each bending | ≤0.2sec/each bending | ≤0.2sec/each bending |
| Max. Bending Length | 1200mm | 1400mm | 2000mm | 2500mm |
| Bending Height | 175mm | 175mm | 175mm | 175mm |
| Max. Bending Thickness | stainless steel | 1.0mm | 1.0mm | 1.0mm | 1.0mm |
| Carbon steel | 1.5mm | 1.5mm | 1.5mm | 1.5mm |
| aluminum | 1.6mm | 1.6mm | 1.6mm | 1.6mm |
| The rest material can be customized |
| Min. Bending Thickness | 0.35mm | 0.35mm | 0.35mm | 0.35mm |
| Bending Degree | 0-360° | 0-360° | 0-360° | 0-360° |
| Accuracy of Bending Angle | ±1° | ±1° | ±1° | ±1° |
| Accuracy of Feeding Length | ±0.1mm | ±0.1mm | ±0.1mm | ±0.1mm |
| Operating system | Windows CE | Windows CE | Windows CE | Windows CE |
| Clamping Method | Sucked or pressing | Sucked or pressing | Sucked or pressing | Sucked or pressing |
| Throat Depth | 180mm or customized | 180 mm or customized | 180 mm or customized | 180 mm or customized |
| Min. One-step Forming Size on All Four Sides | 150*150mm | 150*150mm | 150*150mm | 150*150mm |
| Min. One-step Forming Size on Two Sides | 220*220mm | 220*220mm | 220*220mm | 220*220mm |
| Noise Level | ≈40db | ≈40db | ≈40db | ≈40db |
| Outline Dimension (mm) | 3200* 2100* 2900 | 3400* 2300* 2900 | 5900* 2900* 3200 | 6000* 3400* 4200 |
Product category
Certifications
Company Profile
FAQ
1. How about the delivery time?
Generally it's 15-30 days based on the model.
2. How is the warranty time?
1 year after installation.
Lifetime free technical support.
3. How to choose the suitable machine?
Please advise us the material/ thickness/ dimension of metal sheet, and the punched drawing.
>>
