Basic Info.
Model NO.
65QV-SV, 65QV-SVR
Impeller Number
Single-Stage Pump
Working Pressure
High Pressure Pump
Influent Type of Impeller
Single Suction Pump
Position of Pump Shaft
Vertical Pump
Pump Casing Combined
Verticaljoint Surface Pump
Mounting Height
Since Irrigation Centrifugal Pumps
Pump Type
Vertical Slurry Pump
Wet Parts
High Chrome Alloy
Transport Package
Wooden Crate
Specification
CE, ISO, SGS
Production Capacity
50000PC/Yr
Product Description

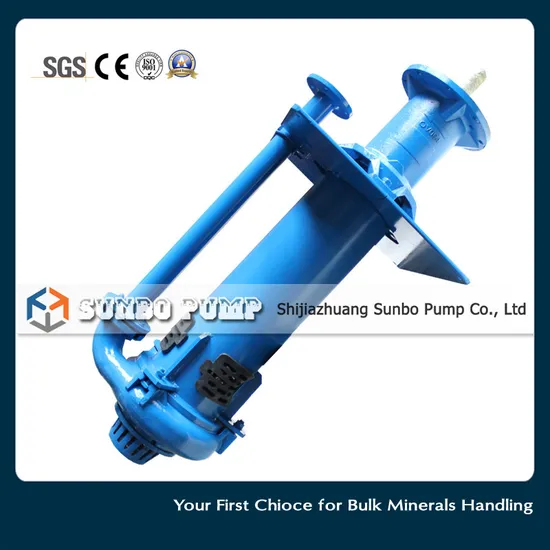

SV (R) Series Introduction:
SV(R) series is vertical centrifugal sump slurry pumps, which is designed to be immersed in liquid for conveying abrasive, coarse particles, dirty water and particle contaminated water.
Features:
1. Metal or rubber lined wet parts
2. Double suction semi-open impeller
3. Agitator option keeps solids in suspension
4. Recessed impeller option passes over-sized material
Specification:
D: 40-200 mm
Q: 17-891m³/h
H: 4-37 m
Pump Structure:
Performance Sheet:
Pump Model | Allowable Max. Power | Clear Water Performance | |
| Capacity Q | Head H(m) | Speed n(r/min) | Max.Eff. η% | Impeller Dia. |
| m3/h | l/s |
| 40PV-SV(R) | 15 | 17-43.2 | 4.7-12 | 4-28.5 | 1000-2200 | 40 | 188 |
| 65QV-SV(R) | 30 | 18-114 | 5-32 | 5-31.5 | 750-1500 | 60 | 280 |
| 100RV-SV(R) | 75 | 54-289 | 15-80 | 5-36 | 500-1200 | 62 | 370 |
| 150SV-SV(R) | 110 | 108-479 | 30-133 | 8.5-40 | 500-1000 | 52 | 450 |
| 200SV-SV(R) | 110 | 189-891 | 52.5-247.5 | 6.5-37 | 400-850 | 64 | 520 |
| 250TV-SV(R) | 200 | 360-1152 | 100-320 | 7-33 | 400-750 | 60 | 575 |
| 300TV-SV(R) | 200 | 540-1548 | 150-430 | 5.5-26 | 350-700 | 60 | 580 |
Application:
SV(R) slurry pumps are mainly used for handing corrosive, coarse particles and high density slurries , and are widely used in sewage treatment, metallurgy, mining, mineral processing, dredging, de-watering, water treatment, coal washing, mill, cyclone feed, tailing, power, building material...etc. various industrial sites. For different duties, pump is named as High head pump, High pressure pump, Mineral processing pump, Mill discharge slurry Pump, Booster pump, Feeding pump, Tailing pump,Transfer pump Thickner Underflow Pump, De-watering screen pump, Pressure pump, Concentrate pump
>>
