Automatic Plastic Fruit Frame Basket Big Box Pot Basin Injection Molding Machine

Product Description

Automatic Plastic Fruit Frame Basket Big Box Pot Basin Injection Molding Machine
Product Parameters

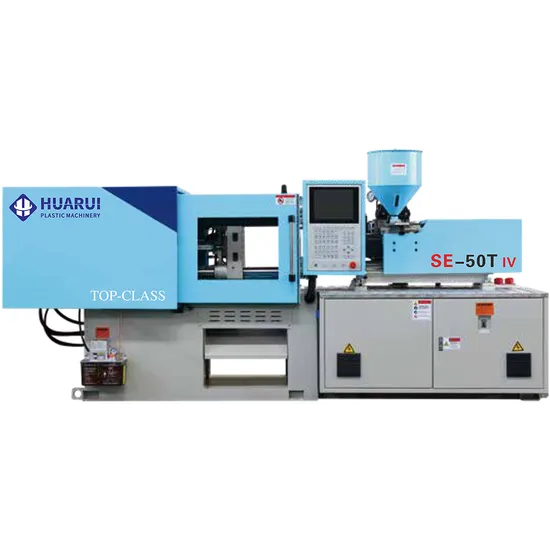

SE-50T IV Plastic Injection Molding Machine Information
Item		Unit		A			B
Screw diameter		mm		28			32
Theoretical shot volume		cm³		68			88
Shot weight (PS)		g		60			80
Shot weight (PS)		oz		2.11			2.82
Length/Diameter ratio		L/D		22			19
Injection pressure		Bar		2080			1850
Injection rate		cm³/sec		110			105
Max.screw speed		rpm		200
Clamping force		KN		500
Max.daylight		mm		430*430
Open stroke		mm		270
Space Between Tie-bars		mm		280*280
Min mould dimension		mm		120
Mould thickness range		mm		340
Ejector force		KN		25
Ejector stroke		mm		70
No.of ejector pins		unit		5
Max.motor power		KW		14
System pressure		MPa		175
Heater input power		KW		8.6
Oil filling capacity		L		100
Machine size		M		3.2*1.15*1.7
Net weight		KG		2000

SE/IV series machine advantages
Distributed architecture (n-tier);
TCP / lP efficient network connection,Internet remote control;
Synchronous cluster status browsing and parameter central control;Real-time heating curve to monitor barrel temperature changes.
Temperature and molding parameter statistics to assist in quality management.Expansion of the die storage space for mutual replication.
Scalability. providing interface with ERP.
Operator password rights management, recording of modification logs.Ease of operation and support for multiple languages.
Detailed Photos
