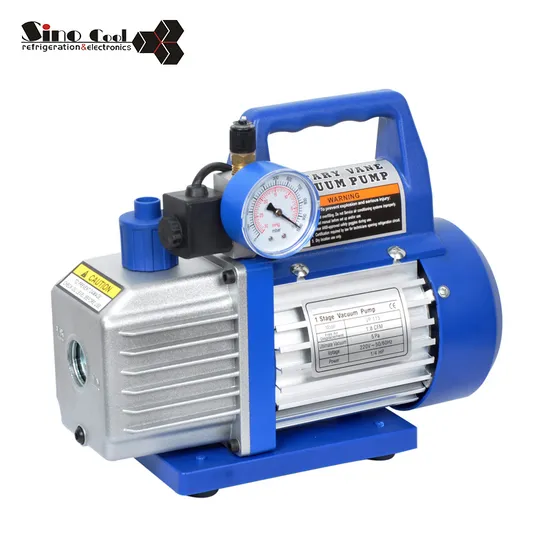

High Quality & Price Competitive Refrigerant Rotary Vane Vacuum Pump

Product Description

Product Description

Single Stage
Model		VP-115	VP-125	VP-135	VP-145	VP-160	VP-180	VP-1100
Flow Rate	220V 50Hz	1.5CFM	2.5CFM	3.5CFM	4.5CFM	6CFM	8CFM	10CFM
		42L/min	70L/min	100L/min	128L/min	170L/min	226L/min	283L/min
	110V 60Hz	1.8CFM	3CFM	4CFM	5CFM	7CFM	9CFM	12CFM
		50L/min	84L/min	114L/min	142L/min	198L/min	254L/min	340L/min
Ultimate Vacuum		5Pa	5Pa	5Pa	5Pa	5Pa	5Pa	5Pa
		150microns	150microns	150microns	150microns	150microns	150microns	150microns
Power		1/4HP	1/4HP	1/3HP	1/3HP	1/2HP	3/4HP	1HP
Inlet Port		1/4"Flare	1/4"Flare	1/4"Flare	1/4"Flare	1/4"&3/8"Flare	1/4"&3/8"Flare	1/4"&3/8"Flare
Oil Capacity		320ml	300ml	350ml	350ml	450ml	700ml	800ml
Dimensions(mm)		270x119x216	270x119x216	278x119x216	278x119x216	320x134x232	370x140x250	390x140x250
Weight		5.3kg	5.5kg	6.5kg	6.8kg	10kg	14kg	14.5kg
Dual Stage
Model		VP-215	VP-225	VP-235	VP-245	VP-260	VP-280	VP-2100
Flow Rate	220V 50Hz	1.5CFM	2.5CFM	3.5CFM	4.5CFM	6CFM	8CFM	10CFM
		42L/min	70L/min	100L/min	128L/min	170L/min	226L/min	283L/min
	110V 60Hz	1.8CFM	3CFM	4CFM	5CFM	7CFM	9CFM	12CFM
		50L/min	84L/min	114L/min	142L/min	198L/min	254L/min	340L/min
Ultimate Vacuum		3x10-1Pa	3x10-1Pa	3x10-1Pa	3x10-1Pa	3x10-1Pa	3x10-1Pa	3x10-1Pa
		25microns	25microns	25microns	25microns	25microns	25microns	25microns
Power		1/4HP	1/3HP	1/3HP	1/2HP	3/4HP	1HP	1HP
Inlet Port		1/4"Flare	1/4"Flare	1/4"&3/8"Flare	1/4"&3/8"Flare	1/4"&3/8"Flare	1/4"&3/8"Flare	1/4"&3/8"Flare
Oil Capacity		180ml	280ml	360ml	350ml	700ml	600ml	700ml
Dimensions(mm)		270x119x216	278x119x216	320x134x232	320x134x232	370x140x250	370x140x250	390x140x250
Weight		6kg	7kg	11kg	11.8kg	15kg	15.5kg	16kg

Full Inspection
Packing&Shipping
Related Products


Exhibition
Company introduction
SINO-COOL trading company is a wholesale company that manufactures good & high quality refrigeration parts, starting from 2007. The company provides the customized products and OEM service. Now deal with the refrigeration parts and tools more than 3000kinds.

---
