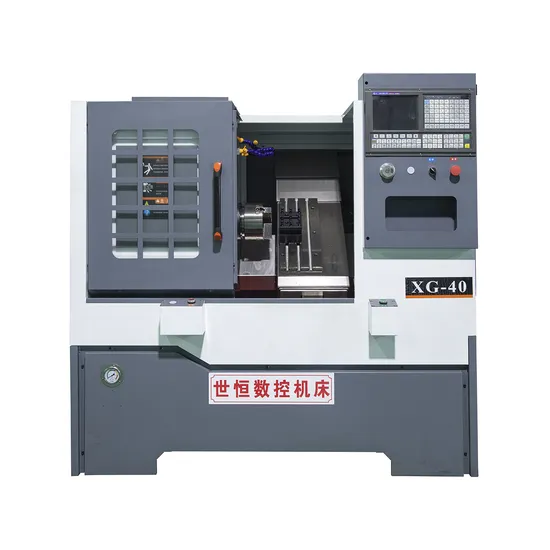

High Precision CNC Metal Lathe Machine Slant Bed Mini CNC Milling and Turning Machine with GSK or Knd Controller

US$5,200.00-6,200.00 1 Piece (MOQ)

Basic Info.

Model NO.
XG40
Type
Horizontal Lathe
Processing Accessory
Chuck CNC Lathe
Guide Rail
Inclined Guide Rail
Tool Holder
Custom
Power Source
Electric
Controlling Mode
CNC
Automatic Grade
Automatic
Setting Mode
Floor-type
Precision
High Precision
Condition
New
Application
Metal and More
Process Usage
Metal-Cutting, Non-Conventional Cutting
Movement Method
Contour Contorl
Control Method
Semi-Closed-Loop Control
Numerical Control
Nc
Performance Classification
Economical CNC Machine Tools
Processing Precision
<=0.01
Bed
Slant Bed
System
GSK
Version
Chinese, English
Clamping
Pneumatic(Hydraulic Is Optional)
X/Z Drive
680/320 mm
Spindle Bore
56
Installable Accessories
Chat with Supplier
Transport Package
Wooden Box
Specification
1600*1400*1600mm
Trademark
Xinshiheng
Origin
Taizhou
HS Code
8458110090
Production Capacity
1000 Pieces/Year

Packaging & Delivery

Package Size
180.00cm * 160.00cm * 180.00cm
Package Gross Weight
1250.000kg

Product Description



Product Description

Detailed Photos
No name quantity Manufacturer Remark
1 CNC system 1 set GSK 928TA2
2 Spindle motor 1 set Lilong Motor 4KW
3 Servo drive 1 set each Keyuan original accessories X axis 4 N holding brake
Z axis 4 N
4 Spindle front bearing Group 1 Renben 7215DBB
5 Spindle rear bearing Group 1 Renben 7213DBB
6 X , Z axis screw bearings 1 group each Luoyang Bearing 720604 flange
7 X , Z axis ball screw 1 group each Taiwan SHAC X axis 2510*710
Z axis 3210*620
8 X- axis linear guide 2 pieces Taiwan SHAC Ball 30*640
9 Z- axis linear guide 2 pieces Taiwan SHAC Ball 30*640
10 Spindle 1 set Xin Shiheng A2-5
11 Tools holder 3 45
12 Cutting fluid pump 1 Ze Gong 40W
13 Automatic lubrication system 1 Yuhuan Hejin gear pump
14 X , Z axis coupling Each 1 Jiangsu 17-19
15 Pneumatic/hydraulic (optional) 1 Dingchang Hollow 1246
16 Spindle frequency converter 1 Xin Shiheng 4KW


Processing capacity capacity
Maximum turning diameter over the bed mm 300
Standard processing diameter mm 40
Maximum processing diameter mm 160
Maximum processing length mm 150
Bar processing diameter mm 40
Movement amount X-axis travel mm 700
Z axis travel mm 420

Spindle
Spindle Speed RPM Within 3000
Minimum indexing angle (Cs axis control) deg -
Spindle nose (nominal name) A2-5
Through hole diameter mm 48/56
Bearing Type 7215/7213

Knife holder
Tool holder form Direct installation
Number of tool clamping pcs 4
Rectangular knife handle height mm 20
Boring bar shank diameter mm 20

tailstock
Tailstock movement amount mm none
Tailstock sleeve diameter mm none
Tailstock sleeve taper hole taper none
Tailstock sleeve movement amount mm none
Feed rate Rapid feed rate m/min X:12/ Z:20

motor
Spindle motor kW 4
Power head motor) kW none
Feed axis motor NM X: 4/Z: 4
Hydraulic pump motor kW 0.75
Cutting fluid pump motor kW 0.4
Required power supply power supply kVA 7.5

Fuel tank capacity
for hydraulic devices L 40
for lubricants L 2
for cutting fluids L 60

Machine tool volume
Machine height mm 1600
Height from the ground to the centerline of the spindle mm 100
Floor space (standard specification) x3 mm x mm 1 6 0 0 x 1400
Machine weight kg 1100



Company Profile
Customer Reviews
Certifications
Exhibitions
Packaging & Shipping
FAQ
1.What is the payment Terms?
A:30% initial payment when order,70% balance payment before shipment;lrrevocable LC at sight.When we receive theadvance payment,we will start to make production.when the machine is ready,we will take pictures to you.after we gotyour balance payment we will send the machine to you.
2. What is your trade terms? A:FOBCFRand CIF all acceptable.
3.When is the delivery time?
A: If the machine you will order is standard machinewe can ready the machine within 15days. if some special ma- chines will be some longer.You can place order accordingto delivery time and ship timewe willgive you the answer accordingly.
4. What is your trade terms?
A:FOB,CFRCIF or others terms are all acceptable.
5. What is your minimum order quantity and warranty?
A: MoQ is one set, lathe warranty is one year and system warranty is three vear
6. What is the package of the machines?
A:The machines standard will be packed in wood case.
(how to guarantee the precision)
In order to guarantee the high precision, we use integrate bed, and imported accessories, such as ball screw rod,
Linear guide rail, automatic lubrication system, during the effective machining range, our machine can guarantee the error 0.01mm.
