CNC Pipe Cutting System with Plasma/Flame Cutting Machine

Product Description

U Technical parameters:
Ø Pipe diameter applicable: Φ 50-Φ 600/800/1200/1500mm
Ø Cutting Pipe wall thickness: 1-25mm (plasma cutting) or as per plasma generator; 5-60mm(flame cutting)
Ø Cutting speed: Plasma cutting speed: 50- 3800 mm/min; Flame cutting speed: 50-750mm/min
Ø Number of axis under control: 3-6 Axis
² Work piece axis of rotation(X)
² Cutting the first work piece along the axis of axial movement(Y)
² Cutting torch along the axial swing axis work piece (Z)
² Cutting torch along the work piece swing radial axis (W)
² Cutting the first spindle axis vertical take-off and landing (U)
² Cutting nozzle strength out and draw back axis (V)
Ø Angle of bevel: Plasma cutting± 45° (adjustable); Flame cutting: ± 60° (adjustable)
Ø Cutting Pipe length: ≤ 12000mm
Ø Max load pipe weight: 4000KGS
Ø CNC system: Original import IPC
Ø Cotrol way: Full CNC control with touch screen & man-machine interface
Ø Integrated precision of the machine:
² ≤ Portrait Moving Error: ± 0.2mm/1000mm
² Turning Angle Error: ≤ 1° Per 180°
² Surface quality: Clean and no dregs
² Repeat positioning accuracy of generatrix: ≤ ± 0.3mm

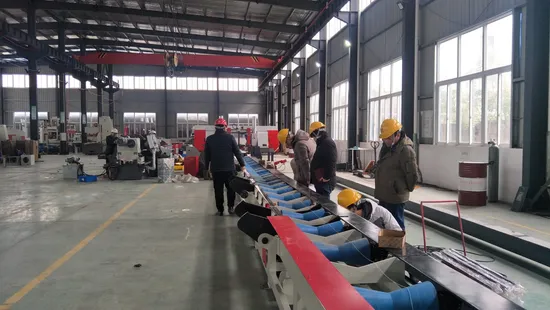

U Basic Configuration:
Ø NC pipe Profile cutting machine mainly are consists of the control system, machine arm system, driving unit, clamp unit, support unit, guide rail, airway system, control cabinet and operation table, etc. One set of flame cutting system (including plasma cutting) is provided as the main cutting system. (or as per customer's request )

	plasma cutting	flame cutting
Number of axis under control:	3-6 Axis	3-6 Axis
Pipe diameter applicable:	Φ 50-Φ 600/800/1200/1500mm	Φ 50-Φ 600/800/1200/1500mm
Cutting Pipe wall thickness:	1-25mm or as per plasma generator	5-60mm
Cutting speed:	50_ 3800 mm/min	50-750mm/min
Angle of bevel:	± 45° (adjustable)	± 60° (adjustable)
Cutting Pipe length:	≤ 12000mm	≤ 12000mm
Max load pipe weight:	4000KGS	4000KGS
Portrait Moving Error:	± 0.2mm/1000mm	± 0.2mm/1000mm
Turning Angle Error:	≤ 1° Per 180°	≤ 1° Per 180°
Repeat positioning accuracy of generatrix:	≤ ± 0.3mm	≤ ± 0.3mm

---
