Datang Milling Machine End Face Milling Mcahine

US$1,000.00-10,000.00 1 Set (MOQ)

Basic Info.

Model NO.

DTX-2025

Type

Meter Milling Machine

Object

Hardware

Structure

Desktop

Milling Cutter Type

Standard

Milling Cutter Structure

Standard

Controlling Mode

Program Control

Automatic Grade

Automatic

Precision

Certification

GS, CE, ISO 9001

Condition

New

Machining Range of Face

2000*2500mm

Vertical Milling Speed

22-600mm/Min

Horizontal Milling Machine

50-500mm/Min

Horizontal Motor

4kw

Vertical Motor

1.5kw

Transport Package

Standard

Specification

Standard

Trademark

Datang

Origin

China

HS Code

84688000

Production Capacity

50 Sets Per Month

Product Description

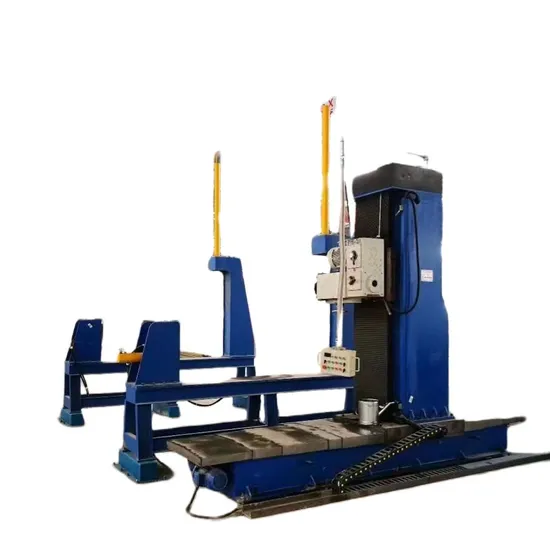

The face milling machine
This machine consists of milling and cutting head, elevator column, work table, lathe bed, mechanical feeding system, electrical control system, rail protection device, tools etc.
This face milling machine is used to mill the end face of Box-beam and H-beam, and the degree of milling head can be adjusted manually in vertical direction to bevel the end face. The hydraulic support rack for choice can fix the beam and is open top, which is easy for hoisting.

Model	DTX 0810	DTX 0812	DTX 1212		DTX 1215	DTX 1520	DTX 2020		DTX 2025	DTX 2040	DTX 3060
Machining range of face(mm)	800× 1000	800× 1200	1200× 1200		1200× 1500	1500× 2000	2000× 2000		2000× 2500	2000× 4000	3000× 6000
Level the milling speed(mm/min)	50-440		50-500
Vertical milling speed(mm/min)	22-550	22-550	22-600		22-600	22-600	22-600		22-600	22-600	22-600
Horizontal motor (kw)	3	3	4		4	4	4		4	4	7.5
Vertical motor (kw)	1.5										2.2
Milling angle(°deg)	0-45
Milling Head Specifications	TX25A			TX32A				TX40A			TX50A
Milling head power (kw)	4			5.5				7.5			11
Cutter rotational speed (rpm)	125-1420			125-1440				1440			1460
Applicable cutter diameter(mm)	100~160			125~250				160~320			200~400
Gross Weight (t)	4	4.1	5.5		5.8	7.6	8.3		8.5	9	15.5
