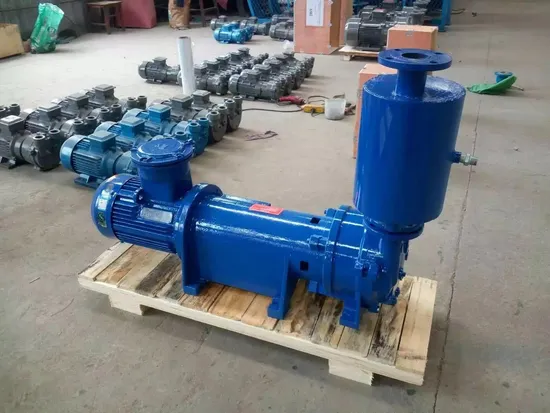

2BV6 Water Ring Vacuum Pump for Chemical, Chemical Fertilizer, Paper and Pharmaceutical Industry From China

Product Description

Catalogue sheet 2BV6 series.
Liquid Ring Vacuum pump
Introducing the 2BV6 Series China Pumps Liquid Water Ring Vacuum Pump - a top-of-the-line product designed to meet all your vacuum pumping needs. This high-quality vacuum pump is perfect for a wide range of applications, from industrial to commercial use.
With its advanced technology and superior performance, the 2be1 202 Series China Pumps Liquid Water Ring Vacuum Pump is the ideal choice for those seeking a reliable and efficient vacuum pump. Its powerful motor ensures maximum suction power, while its durable construction guarantees long-lasting performance.
This vacuum pump is designed to handle a variety of liquids and gases, making it a versatile tool for any industry. Its compact size and easy-to-use design make it a popular choice for those seeking a reliable and efficient vacuum pump.
So if you're looking for a top-quality vacuum pump that can handle all your pumping needs, look no further than the 2be1 202 Series China Pumps Liquid Water Ring Vacuum Pump. With its superior performance and advanced technology, this vacuum pump is sure to exceed your expectations.
Product Description
ELMO-F vacuum pumps are designed by Siemens. The pumps are suitable for evacuating gases and wet vapoure down to inlet pressure of 33 mbar (97% vacuum).
All these vacuum pumps are supplied with built-in cavitation protection. For long-term operation below 80mbar abs. the cavitation protection should be connected for protecting the pump. An inlet pressure of 10 mbar abs. can be achieved by connecting a gas ejector(see accessories). The gas ejector can be mounted directly onto the vacuum pump.
The 2BV2 pumps are especially space-saving units in monoblock design(degree of protection IP55).
They are available in cast iron ( fitted with Stainless steel impeller and portplate) and in chrome-nickel steel (see table).

Table 1

Material of construction for 2BV2 060 to 2BV2 071 (2BV2=2AV1)

MODEL

2BV2(2AV1)

TYPE

VACUUM/COMPRESSOR

PRODUCT CODE

060 - 071

MATERIALS AND WEIGHTS

COMPONENTS

ALL IRON(SS FIT)

ST. STEEL

OPTIONAL

BODY/LOBE

GB 9439 HT200/ASTM A48 CLASS30B

ASTM A351 CF8

CF8M,CF3,CF3M,2205

HEAD

GB 9439 HT200/ASTM A48 CLASS30B

ASTM A351 CF8

CF8M,CF3,CF3M,2205

SHAFT

GB/T 1220 20Cr13/ASTM A276 420

GB/T1220 S30408 /A276 304

ASTM A276 316L

ROTOR

ASTM A351 CF-8

ASTM A351 CF8

CF8M,CF3,CF3M,2205

CONE/PORT PLATE

ASTM A351 CF-8

ASTM A351 CF8

CF8M,CF3,CF3M,2205

SHAFT SEALING

Mechanical seal

Mechanical seal

GASKETS

Rubber sealant

Loctite 515/510

CONSTRUCTION DETAILS

PORT TYPE (NO. OF STAGES)

PLATE (1)

ROTOR BALANCE TYPE

DYNAMIC

ROTATION VIEWED @ D.E.

CLOCKWISE

BALANCE TOLERANCE

ISO1940 G6.3

Table 2 Pump data
Performance Data
/Pump Size	Capacity	Suction Pressure	Speed	Motor Data			Drive	Weight	P/N
	m³/h	mbar.A	RPM	Power	Frequency	Voltage		kg
2BV2 060	2.5 - 12	33 - 1000	2980	0.81kw+SF1.35	50Hz	220V-△/380V-Y	Monoblock	33	2BV2060-0NC01-2P
2BV2 060	3.8 - 14	33 - 1000	3450	1.27kw	60Hz	460V-Y	Monoblock	33	2BV2060-0NF01-1P
2BV2 061	4.0 - 13	33 - 1000	2980	1.45kw	50Hz	220V-△/380V-Y	Monoblock	34	2BV2061-0NC02-2P
2BV2 061	4.7 - 14	33 - 1000	3450	2.55kw	60Hz	460V-Y	Monoblock	34	2BV2061-0NF03-1P
2BV2 070	11.0 - 30	33 - 1000	2980	2.35kw+SF1.25	50Hz	220V-△/380V-Y	Monoblock	54	2BV2070-0NC01-2P
2BV2 070	20 - 29	33 - 1000	3450	3.45kw	60Hz	460V-Y	Monoblock	54	2BV2070-0NF01-1P
2BV2 071	30 - 52	33 - 1000	2980	3.85kw	50Hz	380V-△/660V-Y	Monoblock	62	2BV2071-0NC03-7P
2BV2 071	32 - 57	33 - 1000	3450	6.3kw	60Hz	460V-△	Monoblock	62	2BV2071-0NF04-1P

Characteristic Curves

Selection and ordering data accessories 2BV2
		material	For ELMO-F type		Order No.			Weight Appr. KG
	Discharge liquid separator including recirculation pipe and cavitation protection pipe	Plastic/ Steel Chrome-nickel steel/ Chrome-nickel steel	2BV2 060-ON... 2BV2 061-ON... 2BV2 070-ON... 2BV2 071-ON... 2BV2 070-OH... 2BV2 070-OP... 2BV2 071-OH... 2BV2 071-OP…		2BX1 061 2BX1 061 2BX1 062 2BX1 062 2BX1 063		0.8 1.3 4.8
	Non-return valve screwed dirctly into the pump suction connection	Brass	2BV2 060-ON... 2BV2 061-ON... 2BV2 070-ON... 2BV2 071-ON…		2BY6 930-0AX08 2BY6 930-0AX08 2BY6 932-0AX08 2BY6 932-0AX08		0.7 1.4
	Non-return valve (between flanges) for vertical mounting	Chrome-nickel steel	2BV2 070-OH... 2BV2 070-OP... 2BV2 071-OH... 2BV2 071-OP…		2BY6 904-0HX08		0.7
	Mounting accessory for direct mounting of the non-return valve 2BY6 904-0HX08 onto the pump consisting of 1 set of flanges, fixing screws and gaskets	Chrome-nickel steel	2BV2 070-OH... 2BV2 070-OP... 2BV2 071-OH... 2BV2 071-OP…		2BX1 080		1.9
	2 connection and 2 mating flanges (threaded flanges) including srews and gaskets 2 connection and 2 mating flanges with weld-necks in acc. With DIN 2642 G40 x 48.3, including screws and gaskets	Cast iron Chrome-nickel steel	2BV2 060-ON... 2BV2 061-ON... 2BV2 070-ON... 2BV2 071-ON... 2BV2 070-OH... 2BV2 070-OP... 2BV2 071-OH... 2BV2 071-OP…		2BX1 071 2BX1 071 2BX1 075 2BX1 077 2BX1 076 2BX1 076 2BX1 078 2BX1 078		1.1 1.9 2.1 1.9 2.1
	Gas ejector (characteristic curves as above)
	Mains frequency 50 Hz and 60 Hz
	Curve No. 60 V+260 V 62 V+262 V 61 V+261 V 63 V+263 V 70 V+270 V 72 V+272 V 71 V+271 V 73 V+273 V 70 V+270 V 72 V+272 V 71 V+271 V 73 V+273 V	Head; Diffusor; Jet Cast iron; brass; brass Chrome-nickel steel; Chrome-nickel steel;Chrome-nickel steel	2BV2 060-ON… 2BV2 061-ON… 2BV2 070-ON… 2BV2 071-ON… 2BV2 070-OH... 2BV2 070-OP… 2BV2 071-OH... 2BV2 071-OP…		2BP1 061-1N 2BP1 061-1N 2BP1 070-1N 2BP1 071-1N 2BP1 070-1H 2BP1 070-1H 2BP1 071-1H 2BP1 071-1H		2 3 4 3 4
	Lime transformer prevents lime scale build up in pumps, pipes, tanks, The structure of the lime crystals in changed on a physical basis with the help of permanent magnets so that there is no lime scale build up	Brass, chromed	2BV2… 2BV5 110/111 2BV6 110/111 2BV5 121/131/161 2BV6 121/131/161		2BX1 115 2BX1 116		1.4 1.8

---
