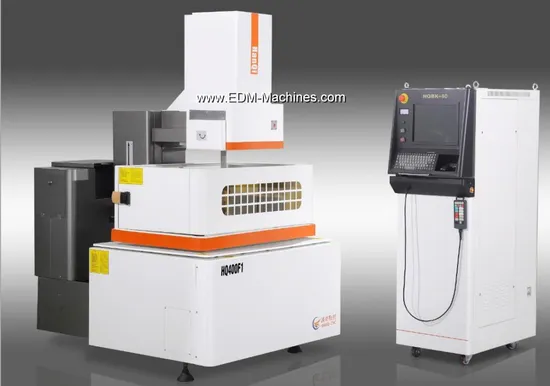

+-12 Degree Wire Cutting Machine, 5 Axis Control, Good Taper Device Wedm Machine

Product Description

Big Taper Cutting Wire Cut EDM Machine High precision taper cutting wire EDM Machine from HANQI. The UV axis also adopt servo motor, different with traditional steps motor. 5 axis CNC controlled and XYUV simultaneous
Traditional big degree cutting wire EDM machine can not reach high accuracy and good roughness because it control degree by up and low wire wheel even the wire will come out the wire wheel
Our machine adopt special degree device avoid this problem
In the market ONLY our company can supply closed loop type big degree cutting wire cut EDM machine, the cutting degree reach +-18 degree/80mm. It make possible get high precision and high roughness degree cutting
XY UV axis servo motor+-15 cutting degreeAutoCut controller system based on Windows XP"C"structure"T"shape machine bed same with brass WEDM structureSpecial industrial computerLCDJapan Panasonic AC servo motorHiwin linear guidewayHiwin ball screwWater tank similar with brass WEDM typeAutomatic lubrication and collect exceed oil systemAutomatic wire tension systemHigh rigidity fixture same with brass WEDMBest finish: 0.0007mmPrecision: +-0.0025mmLED working lampSpecial Z device up and down
Wire Cut EDM Machine Specification

	HQ400-F1	HQ500-F1	HQ600-F1	HQ800-F1
Main machine
Machine dimension (L×W×H)	1680×1200×2300mm	1810×1350×2300mm	2100×1450×2400mm	2300×1600×2400mm
Machine weight	2000 kg	2500 kg	3000 kg	3800 kg
Travels(XY)	400×320 mm	500×400 mm	630×500 mm	800×630 mm
Travel Z	300 (electrical) mm	300 (electrical) mm	300 (electrical) mm	300 (electrical) mm
Size of worktable	740×470 mm	800×510 mm	910×680 mm	1140×750 mm
Size of work tank	980×550 mm	1180×710 mm	1310×795 mm	1400×940 mm
X, Y axes resolution	0,001 mm	0,001 mm	0,001 mm	0,001 mm
Max cutting taper	±15° / 80 mm	±15° / 80 mm	±15° / 80 mm	±15° / 80 mm
Max cutting thickness	320 mm	320 mm	320 mm	320 mm
Workpiece
Max workpiece size	960×530×320 mm	1160×690×320 mm	1290×775×320 mm	1380×920×320 mm
Max workpiece weight	500 kg	600 kg	900 kg	1100 kg
Construction
Work type	Flushing	Flushing	Flushing	Flushing
Machining technology
Max machining current	10 A	10 A	10 A	10 A
Max cutting speed	>200 mm²/min	>200 mm²/min	>200 mm²/min	>200 mm²/min
Multiple cutting precision	≤ ± 0.0025mm	≤ ± 0.0025mm	≤ ± 0.0025mm	≤ ± 0.0025mm
Best surface roughness (Ra)	≤0.7µm	≤0.7µm	≤0.7µm	≤0.7µm
Filtration	Brass WEDM type filter	Brass WEDM type filter	Brass WEDM type filter	Brass WEDM type filter
CNC control system
Display	15' color LED inch	15' color LED inch	15' color LED inch	15' color LED inch
Programmable axes	XYUV-axes (simultaneous 4 axes control)	XYUV-axes (simultaneous 4 axes control)	XYUV-axes (simultaneous 4 axes control)	XYUV-axes (simultaneous 4 axes control)
Operation system	Windows XP	Windows XP	Windows XP	Windows XP
Interpolation	Linear / circle	Linear / circle	Linear / circle	Linear / circle
Interface	USB & RS232 & LAN interface	USB & RS232 & LAN interface	USB & RS232 & LAN interface	USB & RS232 & LAN interface
Others
Wire diameter	Ø0,12 - Ø0,2 mm	Ø0,12 - Ø0,2 mm	Ø0,12 - Ø0,2 mm	Ø0,12 - Ø0,2 mm
Auto wire threading system	No	No	No	No
Power supply system
Power input	2.3 KW	2.8 KW	3.0 KW	3.5 KW
Power source	380V (±10%) 50Hz~60Hz	380V (±10%) 50Hz~60Hz	380V (±10%) 50Hz~60Hz	380V (±10%) 50Hz~60Hz

Wire Cut EDM Machine Key Parts List

Linear guideway	HIWIN P3 grade linear guideway
Ball screw	HIWIN C3 grade precision ball screw
Wire drum	HIWIN P3 grade linear guideway
U, V axis taper device	HIWIN P3 grade linear guideway
Bearings	Germany NEY precision bearing
Computer	Special industrial computer
Display	Industrial Display
Electrolytic capacitors	Japan Ruby or King Kong
X, Y axis servo motor	Japan Panasonic AC servo motor
U,V motor	AC servo motor
Wire guider	Special type diamond guider for wire
Filtration systems	Brass WEDM type water filter
Z-axis electric lift	Electric type
Guide wheel	Special thickness guide wheel
Multifunction fixture	Brass WEDM type fixture
High-strength body structure	T sharp machine bed
Wire constant tension device	2 sets constant tension device
High frequency pulse power	Japan technology, high speed, low roughness
Electrical	Schneider

---
