Basic Info.
Model NO.
wood cutting machine
Controlling Mode
Intelligent Control
Automatic Grade
Automatic
Customized
Non-Customized
After-sales Service
1year
Max Splitting Power
15-20t
Max Splitting Length
Standard 610mm (24 Inch)
Max Cutting & Splitting Diameter
480mm (19 Inch)
Transport Package
Wooden Multi-Layer Boards
Packaging & Delivery
Package Size
230.00cm * 125.00cm * 175.00cm
Package Gross Weight
980.000kg
Product Description
Product Description

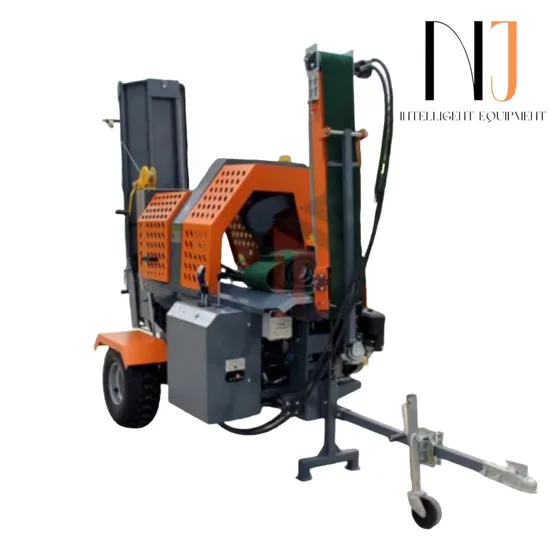

The wood splitter mainly adopts the hydraulic working principle and uses the strong thrust generated by the hydraulic cylinder to split tree stumps, large tree branches, large log sections and relatively hard wood. In this way, the raw materials can be processed to meet the feeding size requirements of the chipper or split into materials for other purposes.Машина для разделения журналов
Detailed Photos
Product Parameters
| Performance | Max splitting power | 20T |
| Max splitting length | Standard 610mm (24 inch) |
| Max cutting & splitting diameter | 480mm (19 inch) |
| Cycle time | 8-12s |
| Work efficiency | 4-7CBM/H |
| Wood fixing | Hydraulic |
| Saw cutting | Joystick with solenoid valve |
| Saw lubrication | Automatic by hydraulic system |
| Splitting | Automatic |
| Splitting wedge | 4 way (height adjustable) |
| Machine assembly | Engine | 18HP LIFAN gasoline (electric start) |
| Pump | 20GMP (2-stage) |
| Splitting cylinder | 3.15''×24''×2'' |
| Hydraulic oil tank | 100L |
| Feeding conveyor | 2400*200mm |
| Rear loading conveyor | 3200*250mm |
| Tyre | 22×11-10 |
| Traction | 50mm ball couple |
| Packing | Size | 2300×1250×1750mm |
| Weight | 980KG |
| Loading Q\ty | 7/16 pcs (20GP/40HQ) |
Widely used in industries such as papermaking, artificial board manufacturing, and wood pulp processing. It is an important preparation machinery for these industries. At the same time, it is also suitable for places that require a large amount of firewood splitting, such as large forest farms, wood processing factories, and biomass fuel production plants.
>>
