600W 1kw 2kw 3kw 5kw 10kw 15kw 20kw 30kw 50kw 100kw 200kw Home Use Horizontal Wind Turbine, Wind Power Geneator, Wind Generation System

Product Description

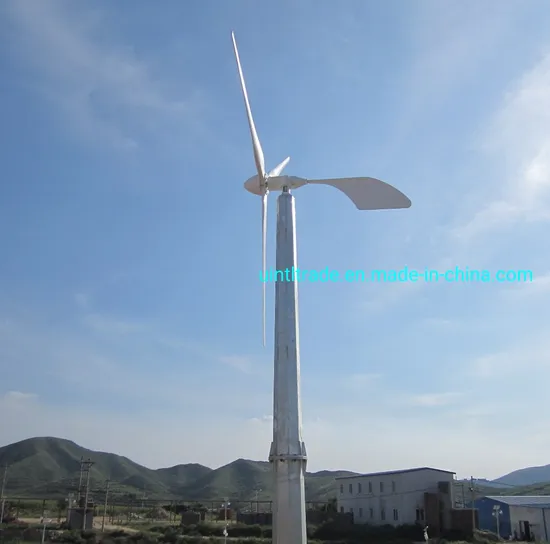

UHWT SERIES HORIZONTAL WIND TURBINE
PRODUCTION DESCRIPTION

Rated power--(W)	600	1000	2000	3000
Max power--(W)	720	1200	3000	4500
Blade diameter--(m)	2.5	2.8	3.8	4.5
Material of blades	FRP
Quantity of blades	3
Rated rotor speed--(RPM)	400	360	320	240
Rated wind speed--(m/s)	8	8	8	9
Start wind speed--(m/s)	2	2	2	2
Working wind speed--(m/s)	3-25	3-25	3-25	3-25
Safe working speed--(m/s)	50	50	50	50
Output voltage--(V)	12,24,48	12,24,48	24-300	48-300
Generator type	3 phase AC
top weight(kg)	45	60	90	120
Material of enclosure	Precision cast steel
Rated power--(W)	5000	10000	20000	30000
Max power--(W)	6500	12000	24000	33000
Blade diameter--(m)	5.4	7.2	10	15
Material of blades	FRP
Quantity of blades	3
Rated rotor speed--(RPM)	250	180	160	150
Rated wind speed--(m/s)	9	10	11	12
Start wind speed--(m/s)	2	3	3	3
Working wind speed--(m/s)	3-25	4-25	4-30	4-30
Safe working speed--(m/s)	50	50	50	50
Output voltage--(V)	48-300	240-420	240-420	240-420
Generator type	3 phase AC
top weight(kg)	180	650	680	1200
Material of enclosure	Precision cast steel

CUSTOMIZED COMPLETE SYSTEN
1). On grid system
2). Off grid system
PACKAGING
PROJECTS
ABOUT US
We UIT company(uintltrade.en.made-in-china.com) can design whole wind turbine generation system with all matched instruments.
Our professional engineer and design team will give you the best suggestion according to different requirements.
If you have interest, please contact us as below and leave your mail address or phone number and we will contact you at once.

---
