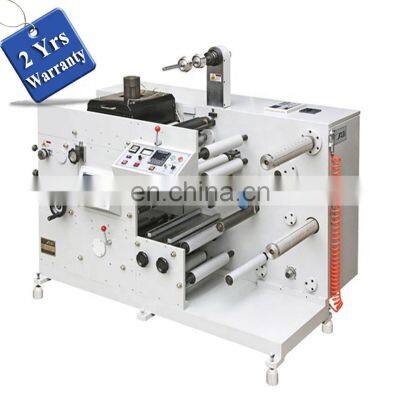

UTR320-1 Single Color Roll to Roll Automatic Paper PP Sticker Flexographic Printing Machine, Epoxy Label Flexo Press Printer
Videos
Video demonstration
Video 01 (1 color): /watch?v=54OsJcUO-jM
Video 02 (2 color): /watch?v=MPrmJ0D5zK0
Video 03 (4 color): /watch?v=IBrqLdPXVow&t=7s
Video 04 (5 color): /watch?v=giSR9_Ylrm0
Product Description
Usages:
An ideal machine to print different label materials such as plastic films, aluminum foil, tissue paper, self adhesive stickers, vinyl, pvc and carton weight boards etc.
Features:
1, Adopts the ceramic anilox roller to spread ink.
2, Unwinding and rewinding are controlled by magnetic power brake, clutch, (or by automatic tension controller of Mitsubishi).
3, Each printing unit adopts 360 degree for color registration.
4. Each printing unit has one IR drier.
5. The rubber roller can break away automatically while stopping and running at a low speed in order to avoid ink dried.
6. The main motor is equipped with import stepless regulation of frequency conversion. 7. Unwinding, web guiding, corona treatment,printing, laminating, UV varnishing, IR drying and rewinding can be finished in one process.
8, An ideal machine to print many kinds of self-adhesive label or stickers.
Parameters
Model
| UTR320-1
| UTR320-2
|
Printing speed
| 80m/min
| 80m/min
|
Printable color
| 1(color)
| 2(colors)
|
Max web width
| 320mm
| 320mm
|
Max printing width
| 310mm
| 310mm
|
Max unwinding diameter
| 600mm
| 600mm
|
Max rewinding diameter
| 550mm
| 550mm
|
Printing circumference
| 175-380mm
| 175-380mm
|
Registration
| ±0.10mm
| ±0.10mm
|
Dimension
| 2000x1200x1400mm
| 2000x1100x1700mm
|
Weight
| 1000kg
| 1300kg
|
Power Supply
| 3Phases, 380V/220V, 50HZ
| 3Phases, 380V/220V, 50HZ
|
Detailed Images
Service Team
Pre-sale Service After-sale Service
A: Inquiry and consulting support A: English manuel and video instruction
B: Sample testing support. B: Your technians can get trained in my factory
C: Invoice and Contract confirmation. C: Engineers available for overseas if necessary
FAQ
1.Q: What information should i let you know if i want to get a quotation?
A: What is your Max and Min print size in mm?
B: Material thickness and unwinding width
C: Some photos of your finished products
2.Q: Are you a manufacturer?
A: Yes we have been manufacturing such machines over 20 years and also we are a professional exporter.
3.Q: What about the payment term?
A: Mostly 30%T/T in advanced, 60% when machine is finished after inspection and last 10% against copy of shipping documents..
4.Q: What is the warranty?
A: Two year warranty after sales (During the warranty period, we respond for free parts dispachment and the buyer is only required to cover the courier express once the machine has any problems. However we do not respond for the consumables and parts broken by mistakingly operation)
5.Q: What is your aftersale service?
A: Any questions will be responded within 24 hours by email, skype, phone call or Whatsapp/Wechat (+86-18258286679). In addtion, we have professional engineer available for overseas service..
6.Q:What is the delivery time?
A: Mostly it takes 10 to 30 workdays after receiving the deposit and confirming the drawing or samples as required.
