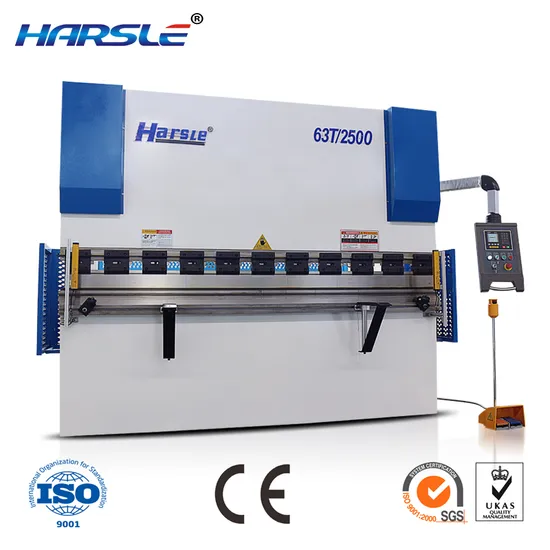

Bending Machine with Estun E21 Nc

US$7,900.00-13,500.00 1 set (MOQ)

Basic Info.

Model NO.
WC67K
Condition
New
Certification
ISO 9001:2008, CE
Automation
Manual
Suitable for
Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel
Type
Hydraulic Bending Machine
Color
as You Like
Company Nature
Manufaturer
Weight
7800kg
Controller
E21
Transport Package
Standard Package
Specification
3000*1500*2500mm
Trademark
harsle
Origin
Jiangsu, China
HS Code
8462219000
Production Capacity
1000sets

Product Description


Technical Parameters
Type Nominal Force(KN) Worktable size(mm) Poles Distance (mm) Throat Depth (mm) Slider Travel (mm) Max Open(mm) Power(KW) Dimension(mm)
40T/2200 400 2200 1875 230 100 320 5.5 2200*1200*1910
40T/2500 400 2500 1875 230 100 320 5.5 2500*1200*1910
50T/2500 500 2500 1875 230 100 320 5.5 2500*1210*2000
63T/2500 630 2500 2020 250 100 320 5.5 2500*1300*2210
63T/3200 630 3200 2575 250 100 320 5.5 3200*1300*2210
80T/2500 800 2500 2020 300 100 320 7.5 2500*1400*2300
80T/3200 800 3200 2590 320 100 350 7.5 3200*1500*2300
80T/4000 800 4000 3050 320 100 350 7.5 4000*1500*2400
100T/2500 100 2500 2020 320 120 320 7.5 2500*1600*2400
100T/3200 100 3200 2600 320 120 370 7.5 3200*1600*2600
100T/4000 100 4000 3050 320 120 370 7.5 4000*1600*2700
125T/3200 1250 3200 2600 320 120 370 7.5 3200*1600*2600
125T/4000 1250 4000 3050 320 120 370 7.5 4000*1600*2700
160T/3200 1600 3200 2600 320 200 460 11 3200*1700*2700
160T/4000 1600 4000 3000 320 200 460 11 4000*1700*2800
160T/5000 1600 5000 4000 320 200 460 11 5000*1900*3100
160T/6000 1600 6000 4940 320 200 460 11 6000*1900*3200
200T/3200 2000 3200 2600 320 200 460 11 3200*1950*2800
200T/4000 2000 4000 3000 320 200 460 11 4000*1950*2800
200T/5000 2000 5000 4000 320 200 460 11 5000*1950*3000
200T/6000 2000 6000 5000 320 200 460 11 6000*1950*3300
250T/3200 2500 3200 2500 400 250 590 18.5 3200*2000*3200
250T/4000 2500 4000 3000 400 250 590 18.5 4000*2000*3400
250T/5000 2500 5000 4000 400 250 590 18.5 5000*2000*3400
250T/6000 2500 6000 5000 400 250 590 18.5 6000*2000*3400
300T/3200 3000 3200 2530 400 250 590 22 3200*2000*3450
300T/4000 3000 4000 3000 400 250 590 22 4000*2000*3450
300T/5000 3000 5000 4000 400 250 590 22 5000*2000*3450
300T/6000 3000 6000 5000 400 250 590 22 6000*2000*3450
400T/4000 4000 4000 3000 400 250 590 30 4000*2180*3400
400T/5000 4000 5000 4000 400 250 590 30 5000*2180*3500
400T/6000 4000 6000 5000 400 250 590 30 6000*2180*3800
500T/5000 5000 5000 4000 400 250 590 45 5000*3500*3700
500T/6000 5000 6000 5000 400 320 590 45 6000*3500*3700
600T/4000 6000 4000 3000 400 320 590 55 4000*4500*3700
600T/6000 6000 6000 5000 400 320 590 55 6000*4500*3700
800T/6000 8000 6000 5000 400 320 590 55 6000*4500*6000
