CNC High-Speed Cylindrical Grinding Machines Mks1320-CBN Mks1332-CBN

Product Description

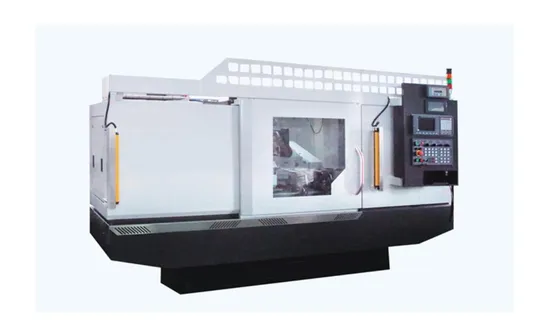

CNC High-speed cylindrical grinding machines MKS1320-CBN/MKS1332-CBN
Main functions and features:
1.This machine is a two-axis two-linkage CNC high-speed cylindrical grinding machine, which has strong processing flexibility, simple and reliable operation, and has the characteristics of high rigidity, high efficiency and high reliability.
2.The machine adopts a stable and firm high- grade HT300 cast iron bed, and the flat and V guide is scraped by hand.
3.The spindle of the wheelstock adopts a high-rigidity sleeve type dynamic pressure spindle, which has the characteristics of high rotation accuracy and strong bearing capacity. The linear speed of CBN grinding wheel can reach 100m/s, which can meet high- efficiency production.
4.The movement of the table and the wheelstock are driven by AC servo motors with high-precision ball screws, and the feed is sensitive.
5.The feed of the wheelstock adopts roller linear guide, which has large bearing capacity and high sensitivity, and can ensure the feed accuracy of the wheelstock and low friction linear motion.
6.The headstock is driven by an AC servo motor through a synchronous belt to realize stepless speed.
7.Various types of diamond dressing devices can be selected for dressing of grinding wheels to realize precise dressing of complex grinding wheel shapes and automatic compensation
8.The machine is equipped with a full protective cover, which is safe and reliable in operation and convenient for on- site management.


Technical Parameters:

Model No.	MKS1320x500/750-CBN	MKS1332x600/1000/1500/2000/3000-CBN
Item No.
Specifications
Dia to be grinded	Φ8-Φ200mm	Φ8-Φ320mm
Max.length to be grinded	500/750 mm	600/1000/1500/2000/3000 mm
Center height	135 mm	180 mm
Center distance	500/750mm	600/1000/1500/2000/3000 mm
Headstock center	4# morse	5# morse
Tailstock center	4# morse	4# 5#(2000/3000) morse
Max.workpiece weight	50 KG	150 KG 500kg(special)
Wheel size	Φ500xBxΦ203 mm	Φ600xBxΦ305 mm
Linearspeed of grinding wheel	100 m/s	100 m/s
Spindle speed of grinding wheel	3820 r/min	3180 r/min
Min.Pulse amount of X-axis	0.001 mm	0.001 mm
Min.Pulseamount of Z-axis	0.001 mm	0.001 mm
X-axis servo motor	11,11 Nm	16,16,18,18,28 Nm
Z-axis servo motor	11,11 Nm	16,16,18,18,28 Nm
Total capacity of motor	15,15kw	25,25,28,28,30kw
Roundness	1320/1.5μm	1320/2μm
Surface roughness	Ra0.2μm	Ra0.2μm
Dia.uniformity in the longitudinal.Section	1320/3μm	1320/5μm

Main Accessories	Extra Accessories
wheel dresser	Wheel Balancing stand
Wheel flange	End face measuring instrument
Oil mist cleaner
Outside hydraulic tank
Outer circle measuring instrument
Automatic wheel balancer
Wheel wrench
Magnetic paper belt filter water tank
Special oil tank for spindle
Balance shaft
Anti-collision and elimination of empty range device

FAQ
1.How can I choose the most suitable machines?
Please advice your technical requirements, or workpiece information or just send drawing, we can provide most suitable machine model information to you.
2.What's your main products of your company?
We specialized in all kinds of metal-working machines, such as CNC Lathe Machine, CNC Milling Machine, Vertical Machining Center, Lathe Machines, Drilling Machine, Radial Drilling Machine, Sawing Machine, Shaper machine, laser and so on.
3.Where is your factory located?
Production bases are in Canton, Jiangsu and Shandong.
4.What is your trade terms?
FOB , CFR and CIF all acceptable.
5.What's the MOQ?
1 SET.
6.Are you a manufacturer?
By collaborating of more than 10 years with selected manufacturers that possess different product advantages, integrating foreign demands, we have built out full range high quality product line which enjoy better pricing and lead time while we can execute production monitor and quality assurance, and we provide comprehensive high-quality pre-sales and after-sales services.
7.What's the Payment Terms?
T/T, 30% initial payment when order, 70% balance payment before shipment Irrevocable LC at sight.
8.How to get quotation?Place an order? How about the delivery time?
Just send us an inquiry or contact us with online service / WhatsApp advising your technical requirements or workpiece information, we will revert you shortly with our catalogue , quotation and other details you need. For standard models, lead time is around 30-60 days after payment received.
9.What service we can offer?
1). 12 months warranty.
2). Free technical support online service via email, telephone, video meeting etc.
3). On-site commissioning, testing and training service.
4). Spare parts and consumable parts supply and machine repair service.
5). All of the questions will be replied within 24 hours.

---
