Small Slippers Making Machine

Product Description

>> Descriptions Product:Specialized in producing single color outsoles, slippers, sandals and short-height boots.
It is particularly effective to the making of all-plastic sport shoe, and leisure shoes etc.
Raw Material:Suitable for all kinds of thermoplastic raw materials,, such as PVC and PCU.
1. It could be equipped with air blowing system and can produce light weight,
particularly the need for reinforced cooling effect.
2. The reversible turntable in case of emergency will eliminate abnormality and upkeep safety operations.
3. Number of various stations may be optionally chosen for small quantity but greater in variety, or mass production.
4. The well-interconnected oil circuit by electric control can reduce waiting time,quicken production rate, and promote productivity.
5. Conformed to human engineering in design, it features easy and friendly operation.
6. The devised C-shaped structure that strengthens cooling system suits particularly the need for reinforced cooling effect.
7. The multi-station mechanism is suitable for numerous molds to work in production line.
It saves the time for the mold-change and extends the length of cooling time.
8. Specially designed, the oil pressure circuit board is simple in structure.
The function description of various switches is clearly indicated.

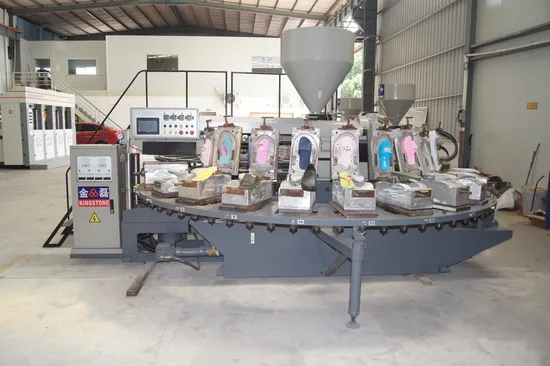

>> Machine Photos
>> Machine specifications

Machine model			JL-108
Mould-clamping Unit
Work station			10,12,16,20,24,30
Clamping force	TON		80
Opening stroke	MM		210
Mould dimension	MM		600*280
Height of injection nozzle	MM		280
Injection Unit
Injector	SET		1
Screw diameter	MM		60/65/70
Screw L/D ratio	L/D		20
Max.injection volume	cm3		650-1000
Injection speed	Cm/s		10
Screw rotation speed	R.P.M		0-200
Electricity Consumption			Normal	Servo
Heating power of injector		KW	7	7
Hydraulic unit motor		KW	18.5	15.7+7.5
Total power		KW	25.5	30.2
Temperature control		Section	4	4
Power consumption per hour		Kw/h	15-20	7-10
Dimension and Weight			24 Stations
Machine dimension	(L*W*H)MM		4600*3600*2300
Machine weight	KGS		5000
*Note:Above data only for reference.

>> Machine drawing
>> Finished Products
The machine can produce various kinds of slippers, sandals, flip flops for women, men and kids.
>> Package & Shipping
For important spare parts, we will pack it with plastic film and carton box or wooden box.
The main machine is pack with plastic film.
Whole machine, use one 20HQ container.
We will choose the suitable container according to your order products.

---
