| Specifications | |
| Application | Widely applied to refrigerator, freezer, showcase, water dispenser, wine cabinet and so on. |
| Raw material | Al-plate: finished products thickness: 1.1 ~ 2.0mm , raw material Al plate thickness: 1.8~ 2.5mm |

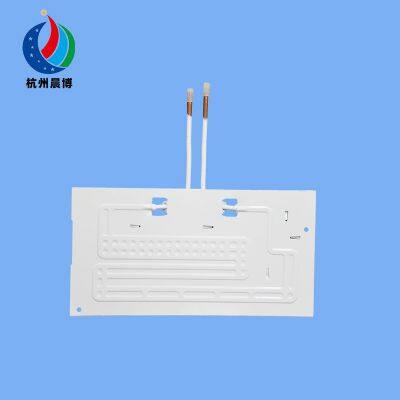

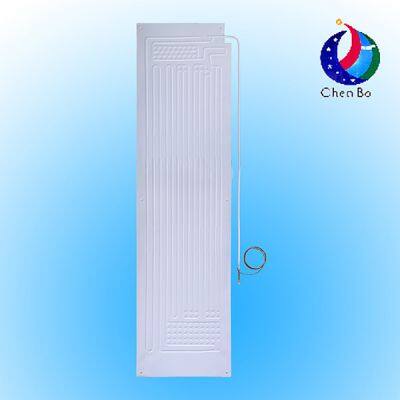

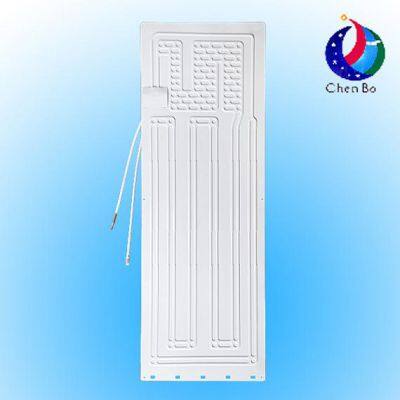

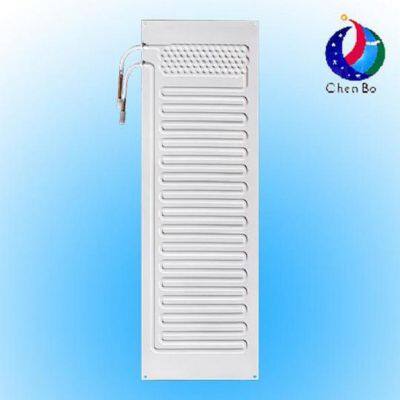

| Structure | • Double side roll bond evaporator, • single side roll bond evaporator, • part single side roll bond evaporator |
| Key process | Prepare the material-Cleaning-Printing-Rolling-Annealing-Punching-Leveling- Blowing up – Folding and shaping-Capillary connecting-Assembly welding-Leakage Test-Cleaning and dry-Coating-Curing-Inspection-Packing. |
| Size | Width: 1200 mm (max) Length:2300 mm (max) |
| Performance | 1) Surface treated with powder painting to prevent the corrosion 2) Inner cleanness can meet the requirement of R 134a、R600、R22 & CFC cooling system. 3) Can satisfy the cooling capability requirements. |
| Note | Can produce according to the drawing or sample supplied by clients, also can help the clients design and produce different new models. |
