US$72,000.00-88,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Process Usage
Metal-Cutting CNC Machine Tools
Control Method
CNC Control
Numerical Control
CNC/MNC
Processing Precision
0.02~0.03(mm)
Performance Classification
Heavy Duty Turning Lathe
CNC System
GSK, Fanuc, Siemens
Local Support
Local Support as Value-Added Services
Optional Configuration
Protection Cover, Chip Conveyor, Turret, Cooling
Tool Post Type
Square RAM or Pentagonal Tool Post
Validity of Quotation
30days
Transport Package
in Wooden Case for Export Shipping
Specification
With chip converyor and protection cover
Production Capacity
500sets/Year
Product Description
CNC SINGLE COLUMN VERTICAL TURNING LATHE
SINGLE COLUMN VERTICAL TURNING LATHE is suitable for:
1. High speed steel and hard alloy tools,
2. Processing all kinds of ferrous metal,
3. Non-ferrous metal and some non-metallic materials of the workpiece.
SINGLE COLUMN VERTICAL TURNING LATHE can do machining:
1. Finish roughing and fining the inner and outer cylindrical surface,
2. Inner and outer conical surface, flat surface, curved surface,
3. Grooving, threading and other processes
CK5116B turret

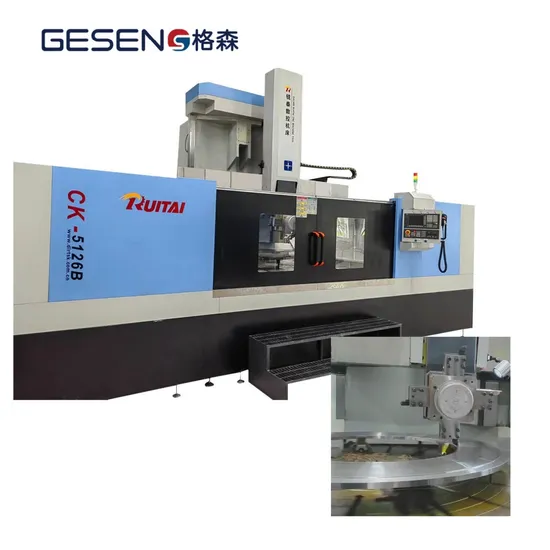

CK5120B turret CK5126B turret CK5116 ram
Parameters
Single column CNC vertical lathe |
| No. | Items | Unit | CK5112 | CK5116 | CK5120 | CK5123 | CK5126 |
| 1 | Worktable diameter | mm | 1000 | 1400 | 1800 | 2000 | 2300 |
| 2 | Max. turning diameter | mm | 1250 | 1600 | 2000 | 2300 | 2600 |
| 3 | Max. turning height | mm | 1000 | 1200 | 1250 | 1350 | 1500 |
| 4 | Max. Weight of work piece | t | 3.2 | 5 | 8 | 8 | 8 |
| 5 | Range of table speeds | r/min | 6.3-200 | 5-160 | 4-125 | 3.2-100 | 2.5-80 |
| 6 | Worktable max. torque | Kn/m | 17 | 20 | 25 | 25 | 28 |
| 7 | Max.cutting forceof tool post | Kn | 18 | 25 | 22 | 25 | 25 |
| 8 | Ram horizontal stroke | mm | 700 | 915 | 1110 | 1210 | 1260 |
| 9 | Ram vertical stroke | mm | 650 | 800 | 800 | 800 | 800 |
| 10 | Fast moving speed of tool post | mm/min | 1800 | 2000 | 2000 | 2000 | 2000 |
| 11 | Lift and down speed of beam | mm/min | 440 | 440 | 440 | 440 | 440 |
| 12 | Tool bar size | mm | 40×40 | 40×40 | 40×40 | 40×40 | 40×40 |
| 13 | Main motor power | Kw | 22 | 30 | 30 | 30 | 37 |
| 14 | Machine weight(about) | t | 8.5 | 12.5 | 17.5 | 18.5 | 25 |
CUSTOMIZATION SERVICE
Professional machine design to meet various working demands.
Vertical tool rest/tool turret/working height/worktable/CNC or manual/color
Worktable rotary speed range
5-160r/min
4grade stepless speed change | Turret fast moving speed 2000mm/min
Vertical turret max. cutting force 25Kn | HT300 worktable
QT500 spindle
Precision gear hobbing |
Kindly contact us to get your vertical lathe machine tool.
>>
