Versatile Automated 1.5/ 2 Tons Self-Driving Electric Agv Forklift for Factory and Warehouse

Product Description

Company Profile Shenzhen Reeman Intelligent Equipment Co., Ltd. was founded in 2015, the domestic new generation of intelligent mobile robot technology pioneer and pioneer, 2018 & 2021 consecutively won the national high-tech enterprises, the factory covers an area of 6,000m ², the office space of 2,000m ², and now has 260 employees.The company always adheres to R&D as the root and innovation as the foundation, and is committed to R&D and application in the field of artificial intelligence. The number of completely independent intellectual property rights reaches more than 200, and the products cover a wide range of series, such as factory handling, AGV&AMR, food delivery robots, cleaning robots, robotic chassis, disinfection robots, commercial service robots and so on, which have been exported to more than 100 countries and regions all over the world. At present, the company has two branches in Ningbo, Zhejiang Province and Tokyo, Japan.

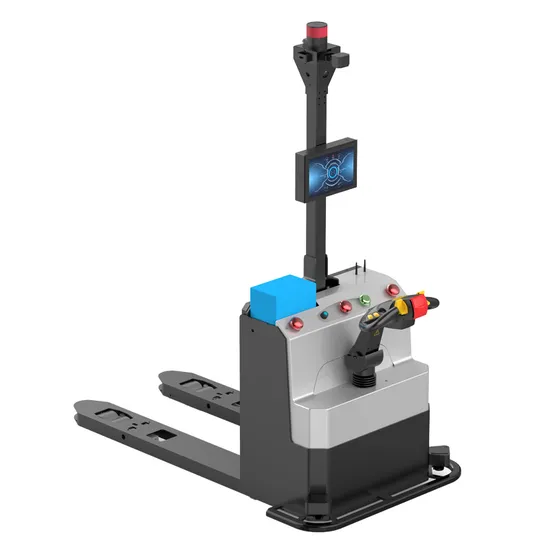

Product Description Ironhide Autonomous Forklift, built-in forklift special PLC actuation system and special industrial control machine, maximum load capacity of 1.5T, laser SLAM navigation, without reflectors, more convenient deployment; pallet recognition, accurate forklift; slim figure, small turning radius, adapt to narrow channel applications; with 3D obstacle avoidance, safety touch edge and other sensors for 360 ° three-dimensional safety protection, it is the best choice for pallet cargo handling and material transport and other work requirements. With 3D obstacle avoidance, safety touch and other sensors for 360° three-dimensional safety protection, it is the perfect choice for pallet cargo handling, material transport and other work requirements.

Detailed Photos
Product Parameters

Rated load	1500KG
Load center distance	600mm
Vehicle weight (battery included)	380KG
Body size	1715mm(L)x940mm(W)x2080mm(H)
Fork size	1150mm/182mm/55mm
Fork outside distance	685mm
Lifting height	120mm
Minimum height of fork surface from ground	84cm
body ground clearance	50mm
Wheelbase	1115mm
Turning radius	1350mm
Tire type (Carrying wheel/driving wheel/auxiliary wheel)	organosilicon
Tire size, load wheel	82mmx96mm
Tire size, drive wheel	230mmx75mm
Tire size, training wheels	100mmx40mm
Number of wheels (Carrying wheel/driving wheel (x=driving wheel)+auxiliary wheel)	4/1x+2
Wheel base, drive side	518mm
Wheel base, load-bearing side	515mm
Right angle stacking channel width ((Pallet 1000×1200) 1200 across fork direction)	2176mm
Right angle stacking channel width ((Pallet 800×1200)1200 along the direction of the fork)	2103mm
Travel speed, full/empty	0.8m/s,1m/s
Lifting speed, full/empty	40mm/s,40mm/s
Descending speed, full/empty	70mm/s,60mm/s
Maximum climbing ability (Full/Empty)	5%,10%
Braking method	electromagnetic
Drive motor power	0.9Kw
Lifting motor power	0.8Kw
Steering motor power	0.4Kw
Lithium battery voltage	48V
Lithium battery capacity	30Ah
Manual operation mode	handle
Top single line LiDAR	60m
Single-line laser obstacle (avoidance lidar*4)	8m
Industrial grade pallet image recognition (IP65)*1	8m
Highly accurate 3-axis attitude	1Pcs
HD touch display integrated screen (size)	10.1 inches
