Animal Pet Dog Cat Cattle Cow Horse Floating Sinking Fish Feed Food Processing Making Extruder Machine

Product Description

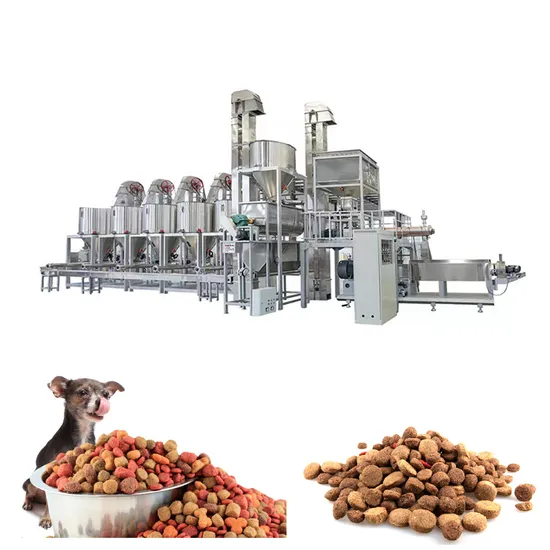

Animal feed machine produce different products (dog food, fish food, cat food, Pet chews, dog treats)
Pet food machine, dog food machine, cat food machine,fish feed machine.
Dog food samples:
Fish feed samples:
1. Main feature:
It can make kinds of feed, such as food fish, catfish, shrimp, crab, etc. The fish pellet made by the machine can float on water for more than 24 hours. The gelatinization degree can reach 90%, enhancing the output of fodders, it is suitable for making floating feed, pet food, and fish fodder. The diameter of the particle is 0.6-16mm. Promising fodder output evenly and continuously.
2. Raw materials: Adopts soya meal, fish meal, bone meal, rice bran, etc. As raw materials.
3. Flow of chart:
Mixer -Screw conveyor -Twin-screw extruder -Eelevator-Dryer-Hoister -Flavoring line -cooling conveyor.
4. Component details:
Voltage in China: Three phases: 380V/50Hz, Single phase: 220V/50Hz, we can make it according to customers' Local voltage according to different countries.
Machine materials: All the aquaculture fish feed machine production lines are made of stainless steel, this line is with reasonable design and with high automation; The screws are made of alloy steel, with a building block system structure and self-cleaning function.
Main Parts of Twin screw extruder with electricity heating system:
A. The screws are made of alloy steel (38CrMoAl) and special craft by nitriding process, The HRC hardness is around 60---62, it has good self-cleaning ability and does not need to discharge or clean the barrel and screw, when roasting or replacing materials.
B. The extrusion barrel is constructed of carbon steel and is made of #45 steel, stainless steel coating.
C. The gearbox has an automatic lubrication function, with extended gear life.
D. Cutting knife fixed in the die head seat, rotary cutting by V-belt drive.
E. Siemens(China) brands electronic parts used in the controller box, making sure the extrusion process is perfect.
F. Main Motor from Siemens(China), ensures its powerful extrusion and excellent performance.
6. Parameter:

Model	SLG65	SLG70	SLG85	SLG95
Install Power	65KW	110KW	190KW	300KW
ConsumptionPower	42KW	77KW	133KW	210KW
Output	120-150KG/H	220-260KG/H	500-600KG/H	900-1000KG/H
Dimension	19000×1300×2200mm	22000×1300×2200mm	30000×1300×2500mm	38000×1300×3000mm

Machine Production Process:
Machine use best quality parts:
Our services:
We Provide Satisfied Service & Turnkey Solutions:
Before sale services:
1. Provide a free consultation on the equipment.
2. Provide the standard device and the flow chart.
3. According to the client's special requirement, offering a reasonable plan and free design helps to select the equipment.
Services during the sales:
1. Help the client design the factory and offer professional advice, and free engineering drawings for the factory layout.
2. Welcome to visit our factory or the domestic clients' factory.
3. Inspect the machine before leaving the factory.
After-sale services:
1. Overseas installation and debugging of the equipment.
2. Train the first-line operator.
3. Provide the basic formula
4. Operation/ Service/ Maintenance Manual: Provided In English.
5. We will provide 1-2 engineers to the client's factory for the installation and teach totally in 10 days. The client needs to provide room, food, round-trip transportation, a visa fee, and a nominal $40 daily subsidy per person.

Relevant spare parts	Free, delivery with processing line
Guarantee	Within 12 months
Oversea service	Provide installation and commissioning after the machine arrives at your factory
Payment terms	30% is paid by T/T as the down payment, 70% is paid by T/T orL/C before shipment.
Delivery time	30 days after receipt of the deposit
Pre-shipment	When it is finished, we will invite you to our company to inspect the machines, then no problem, we will arrange the shipment

We Jinan Saibainuo Machinery Co., Ltd, Sincerely welcome you to our factory, you will know our machines and factory strength better after your visit, and guarantee you will have a worthy journey in China.
For any further information, please contact me any time!

---
