High Quality 8kw 10kw 12 Kw Hybrid Inverter 120V 15kw Solar Inverter Hybrid 10 Kw Deye Hybrid Grid Tie Inverter

Product Description

Product Description

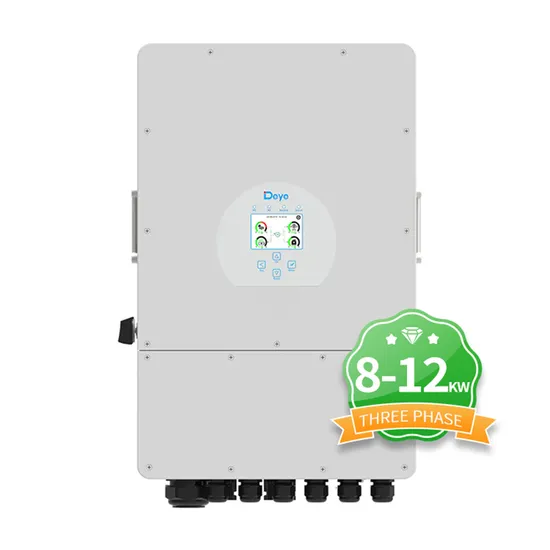

Hybrid Inverter SUN 8/10/12K-SG is brand new three phase hybrid inverter with low battery voltage 48V, ensuring system safe and reliable. With compact
design and high-power density, this series supports 1.3 DC/AC ratio, saving device investment. It supports three phase unbalanced output,
extending the application scenarios. Equipped with CAN port (x2) BMS and parallel, x1 RS485 port for BMS, x1 RS232 port for remotely
control, x1 DRM port, which makes the system smart and flexible. SUN-8/10/12K-SG01LP3 | 8-12KW | Three Phase | 2 MPPT | Hybrid Inverter | Low Voltage Battery System Architecture
The following illustration shows basic application of this inverter. It also includes following devices to have a Complete running system. - Generator or Utility
- PV modules
Consult with your system integrator for other possible system architectures depending on your requirements.
This inverter can power all kinds of appliances in home or office environment, including motor type appliances such as
refrigerator and air conditioner.

1.DC Breaker for battery 2.AC Breaker for grid and backup load
SUN 8K-SG: 250A DC breaker SUN 8K-SG: 80A AC breaker SUN 10K-SG:300A DC breaker SUN 10K-SG:80A AC breaker SUN 12K-SG:300A DC breaker SUN 12K-SG:80A AC breaker
3.AC Breaker for grid and backup load 4.AC Breaker for home load
SUN 8K-SG: 20A AC breaker Depends on household loads SUN 10K-SG:32A AC breaker SUN 12K-SG:32A AC breaker Product Parameters

Model	SUN-8K-SG04LP3	SUN-10K-SG04LP3	SUN-12K-SG04LP3
Battery Input Data
Battery Type	Lead-acid or Lithium-ion
Battery Voltage Range(V)	40~60V
Max. Charging Current (A)	190A	210A	240A
Max. Discharging Current (A)	190A	210A	240A
Charging Curve	3 Stages / Equalization
External Temperature Sensor	Optional
Charging Strategy for Li-Ion Battery	Self-adaption to BMS
PV String Input Data
Max. DC Input Power (W)	10400W	13000W	15600W
PV Input Voltage (V)	550V (160V~800V)
MPPT Range (V)	200V-650V
Start-up Voltage (V)	160V
PV Input Current (A)	13A+13A	26A+13A	26A+13A
No.of MPPT Trackers	2
No.of Strings Per MPPT Tracker	1+1	2+1	2+1
AC Output Data
Rated AC Output and UPS Power (W)	8000W	10000W	12000W
Max. AC Output Power (W)	8800W	11000W	13200W
Peak Power (off grid)	2 times of rated power, 10 S
AC Output Rated Current (A)	12A	15A	18A
Max. AC Current (A)	18A	23A	27A
Max. Continuous AC Passthrough (A)	50A	50A	50A
Output Frequency and Voltage	50 / 60Hz; 400Vac (three phase)
Grid Type	Three Phase
Current Harmonic Distortion	THD<3% (Linear load<1.5%)
Efficiency
Max. Efficiency	97.60%
Euro Efficiency	97.00%
MPPT Efficiency	99.90%
Protection
PV Input Lightning Protection	Integrated
Anti-islanding Protection	Integrated
PV String Input Reverse Polarity Protection	Integrated
Insulation Resistor Detection	Integrated
Residual Current Monitoring Unit	Integrated
Output Over Current Protection	Integrated
Output Shorted Protection	Integrated
Output Over Voltage Protection	Integrated
Surge protection	DC Type II / AC Type II
Certififications and Standards
Grid Regulation	IEC61727, IEC62116, IEC60068, IEC61683, NRS 097-2-1
Safety EMC/Standard	IEC62109-1/-2, IEC61000-6-1, IEC61000-6-3, IEC61000-3-11, IEC61000-3-12
General Data
Operating Temperature Range (ºC)	-25~60ºC, >45ºC Derating
Cooling	Smart cooling
Noise (dB)	<30 dB
Communication with BMS	RS485; CAN
Weight (kg)	36.8
Size (mm)	422W×658H×281D
Protection Degree	IP65
Installation Style	Wall-mounted
Warranty	5years

Why Choose Deye Solar inverters?
1.Deye Solar inverters have been installed in more than 60 countries (e.g. Australia, Brazil, India, the UK, Germany,
Italy,Belgium, Spain, Netherland, France, Vietnam, South Africa, Pakistan, Japan, Korea, China etc.) with currently 9 own
subsidiaries in Shenzhen, Wuxi, Dongguan, Xinyang, Australia, India, Germany, UK and Italy.
2.Your Best Choice For AC Storage Hybrid Solutions and String Inverters
3.All Deye Solar inverters can be found in PV Solar system
4.All Deye Solar inverters and distributors are insured by US CHUBB Insurance corporation company
5.All Deye Solar inverters are equipped with Standard WiFi communication
6.Deye Solar inverters are equipped with 25-year data storage capabiliity (Internal SD Card) Product Details
