Fuootech Oil Density Meter Petroleum Products Density Tester Measuring Devices Test Apparatus

Product Description

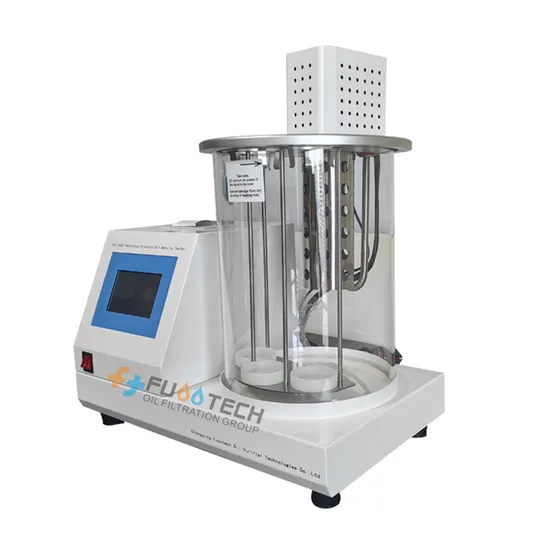

Product Description FUOOTECH's ISO & CE certified Model DST-2000 Portable Digital Petroleum Products Oil Density Testing Equipment for liquid petroleum products is designed and made as per national standard GB/T 1884-2000 "Test Methods for Density of Petroleum and Liquid Petroleum Products (Densimeter methods)" and ASTM D1298: Standard Test Method for Density, Relative Density, or API Gravity of Crude Petroleum and Liquid Petroleum Products by Hydrometer Method.
This Oil Densitometer is widely applied to determine the density of liquid petroleum products such as lubricating oil, hydraulic oil, diesel fuel, transformer oil etc.

Power supply	AC 220V±10%, 50 Hz (Customizable)
Temperature controller	Temperature controlling range: Room Temperature ~100 °C (refrigeration system should be installed if less than room temperature)
	Temperature controlling accuracy: ±0.1 °C
	Temperature sensor: Industrial platinum resistance, PT100
Thermometer	It is a total immersed mercury thermometer having scale division of 0.2 °C
Test cup number	3 holes
Ambient temperature	Recommended room temperature ~ +40 °C
Relative humidity	≤85%
Dimension	77 * 55 * 95cm
Weight	32Kg

MAIN FUNCTIONS AND CHARACTERS :
1.This series of new constant temperature liquid density meter, thermostatic system and density measurement system are integrated, using Archimedes principle and precision electronic measurement technology, and advanced electronic constant temperature technology to achieve fast and accurate measurement of liquid density at specific temperatures. It comply with ASTM D4052 ;
2.The density measurement system of this series adopts German imported sensor with high precision and good stability;
3.The measuring frame adopts high temperature resistant high strength material, open structure design, guarantees the stability of density measurement system and the convenience of taking samples; and cleaning measurement The convenience of the cup;
4.the constant temperature system is combined with the Japanese imported temperature control system and the PT100 temperature sensor. It has a wide temperature range, and can be set freely in the range of 10ºC ~ 50ºC. The constant temperature accuracy is 0.1ºC; the whole machine has a constant temperature;
5. Fast speed, high precision and good durability; suitable for quality management, formulation development, cost control and other applications. Detailed Photos
