0.1mm 18650 Battery Pack Welder Welding Machine

Product Description

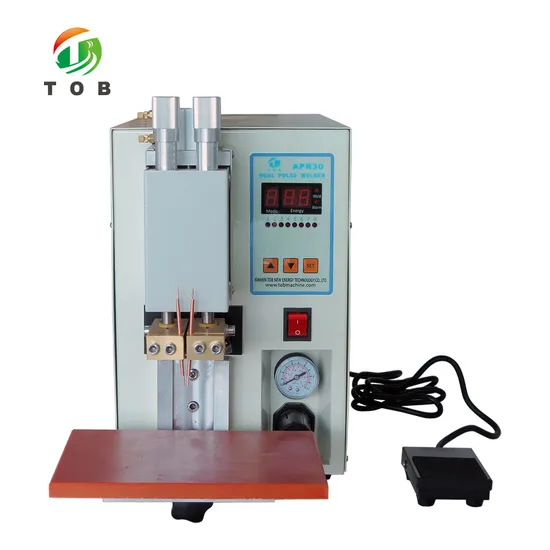

0.1mm 18650 Battery Pack Welder Welding Machine
This pneumatic spot welding machine is mainly used for 18650 cylinder cell pack welding, it can weld Nickel tab thickness from 0.02-0.2mm with good welding effect.
This Pneumatic model is with smaller volume and weight, easy for international shipping.
1 Microcomputer control, CNC current adjust
2 High precision welding power
3 Digital tube display, keyboard control, welding parameters flash storage.
4 Double pulse welding, make welding more firmly.
5 Small welding sparks, solder joint uniform appearance, the surface is clean
6 Welding times can be set
7 Can set preloading time, the holding time, time to rest, the welding speed can be adjusted.
8 Large power, stable and reliable.
9 Double needle pressure adjustable separately, Suitable for different thickness of Nickel strip.

Model	TOB-APR30
Control mode	Pneumatic
Welding power	3000A
Welding method	Double pulse
Maximum output power	15KVA
Voltage supply	AC 220V±10%, 50Hz±2Hz
Welding way	Ordinary welding and continuous automatic welding
Time setting	0-2.55s
Automatic counting function	yes
Weight	30kg
Dimensions	470*220*320mm
