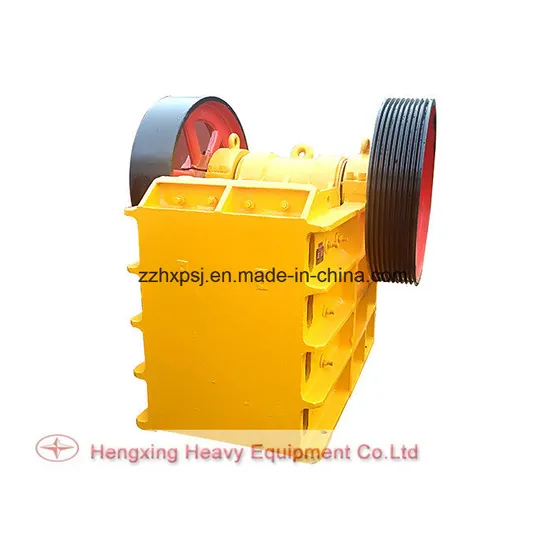

Good Quality PE600*900 Jaw Crusher for Phospahate Rock

Product Description

Good Quality PE600*900 Jaw Crusher For Phospahate Rock
Jaw Crusher is ideally suitable for primary and secondary crushing. The largest compression resistance of the material to be crushed.
Product description:
Jaw Crusher is ideally suitable for primary and secondary crushing. The largest compression resistance of the material to be crushed is 320MPa. The jaw crusher is widely used in stone mining, metallurgy industry, building material, highway, railway, and chemical industry.
Jaw crusher Working Principle:
The main structure of the jaw crusher consists of body frame,eccentric shaft,big pulley,flywheel,movable jaw,cheek plate,toggle plate,toggle seat,top thread bolt,reset spring,fixed jaw and movable jaw,the toggle plate has a great role in insurance.This jaw crusher uses motor as its power. Through the motors wheels, the eccentric shaft is driven by the triangle belt and slot wheel to make the movable jaw plate move by a regulated track. Therefore, the materials in the crushing cavity composed of fixed jaw plate, movable jaw plate and side-lee board can be crushed and discharged through the discharging opening.
Jaw crusher Features:
1.The deep crushing cavity increases the feeding capacity and output capacity;
2.High crushing ratio, homogeneous final product size;
3.Adjusting the discharge opening through gasket, more convenient,the adjusting range is wide, it can meet different customers' requirement;
4.Lubricate system is safe and reliable, easy to change the spare parts;
5.Simple structure, easy maintenance; consumption cost is lower;
6.Energy-saving; for one set of crusher saving about 15%-30% and more than twice for the whole crushing system;
7.Adjustment of the discharge port range, to meet the requirements of the different users.
8.Little noise and dust.
Jaw crusher main technical parameters:

Model	Opening Size (mm)	Max. Feeding Size (mm)	Discharge Size(mm)	Capacity (t/h)	Power (kw)	Dimension (mm)
PE-250×400	250×400	200	20-50	5-20	15	1430×1310×1340
PE-400×600	400 ×600	350	40-100	15-60	30-37	1700×1732×1653
PE-500×750	500×750	425	50-100	40-110	45-55	2035×1921×2000
PE-600×900	600 ×900	480	65-160	90-180	55-75	2290×2206×2370
PE-750×1060	750 ×1060	630	80-140	110-320	90-110	2655×2302×3110
PE-900×1200	900×1200	750	95-180	220-450	132	3475×2826×3025
PE-1000×1200	1000×1200	850	95-190	230-500	132	3800×3166×3045
PE-1200×1500	1200×1500	1020	150-300	400-800	220	4930×3148×3703
PE-1500×1800	1500×1800	1200	220-350	450-1000	355	5630×3210×4120
PEX-150×250	150×250	125	10-40	1-3	5.5	896×745×935
PEX-150×750	150×750	125	18-48	5-16	15	1200×1500×1200
PEX-250×750	250×750	210	25-60	15-30	22-30	1667×1545×1020
PEX-250×1000	250×1000	210	25-60	15-50	30-37	1550×1964×1380
PEX-250×1200	1200×250	210	25-60	20-60	37-45	2192×1900×1950

Our factory :
-After-sale services
Normally, the equipment warranty is 18 months since installation, but can extend as long as 24 months as
the clients' request. Equipment spares will be offered with manufacturing cost in at least 10 years since
the order is placed. To establish long term cooperation, we will regularly call and email our clients, to
check the equipment working condition, offer suggestions for maintenance,and if necessary we will pay
a visit to clients to solve the problems caused during equipment working.
